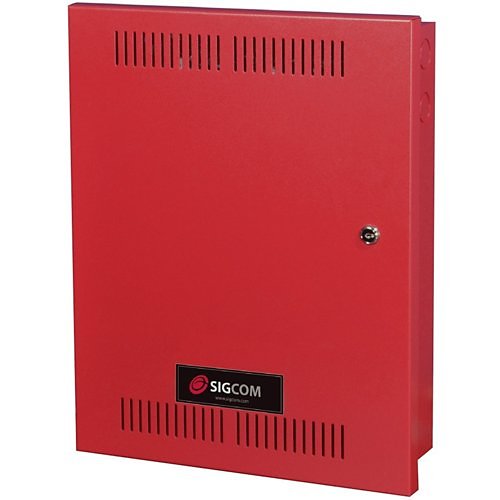

SigCom DAPB-100 Distributed Audio Power Booster for Voice Evacuation System, 100W
The SigCom DAPB-100 is a distributed audio power booster that adds 100 watts of audio output power to any new or existing voice evacuation system. It works with any manufacturer’s voice evacuation control panel, including SigCom’s VECP series.
Each DAPB-100 also provides four Class A or Class B 25 Vrms supervised speaker circuits, with an option for 70 Vrms with the addition of a supplemental transformer. The DAPB-100 is designed for upgrading or expanding existing voice evacuation systems to add 100 watts of audio power and 4 speaker circuits — without replacing the system. It also supports new installations.
Main Features
- Designed to add 100W audio power to any voice evacuation system
- Simple, out-of-the-box operation
- 100W high efficiency Class D digital amplifier
- Activated with 24 VDC polarity reversing NAC circuit and/or dry-contact
- Includes 4 fully supervised speaker circuits (Class A or B)
- Supports 25 Vrms speaker circuits with option for 70 Vrms
- Built-in UL listed power supply with backup battery charger
- Listed for UL 864 9th Edition – Control Units and Accessories for Fire Alarm Systems
- Listed for UL 1711 – Amplifiers for Fire Protective Systems
General Information
- Name: this SigCom device Distributed Audio Power Booster for Voice Evacuation System, 100W
- Category: Signal Communication, Fire, Fire Voice Evacuation Systems
- Country of Origin: United States (subject to change)
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 20 × 15.8 × 5 in |
