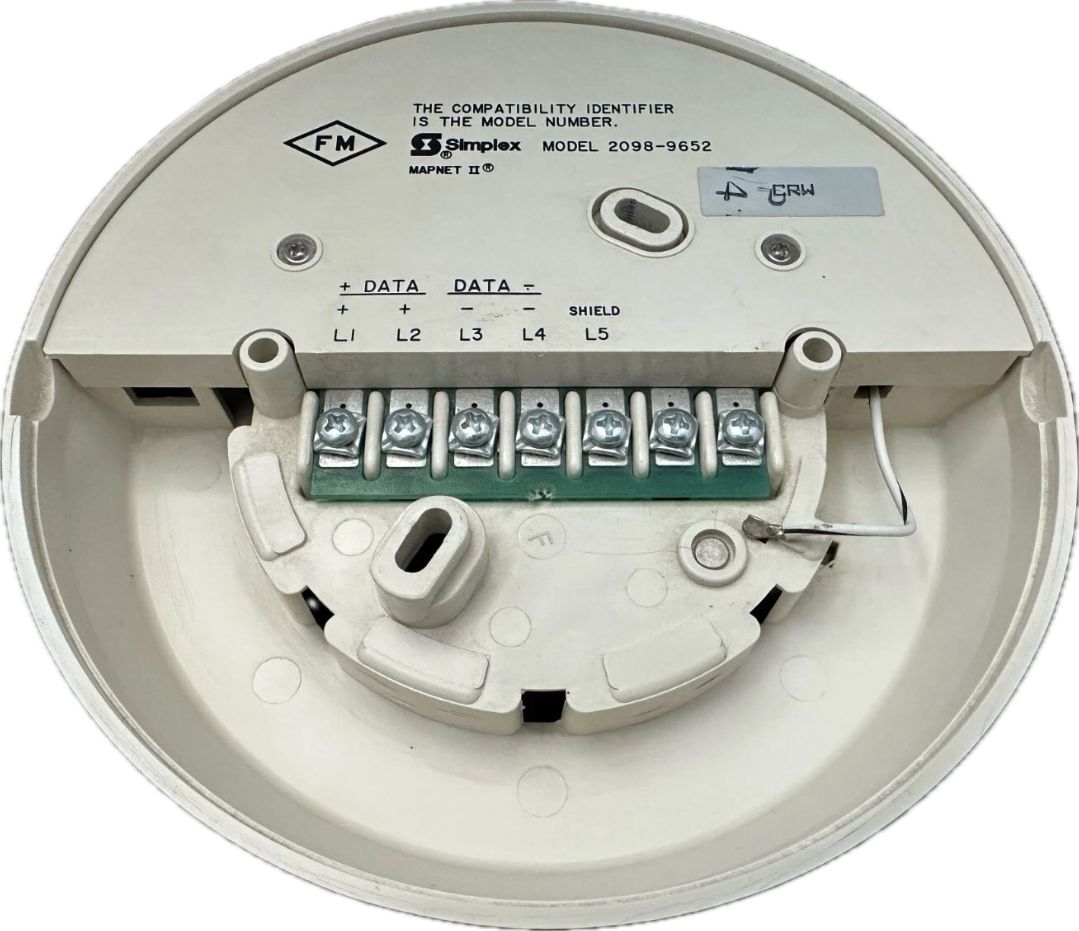

Simplex (2098-9652) Addressable Base w/alarm LED 0617616

The Simplex 2098-9652 is a MAPNET II addressable smoke detector base designed for legacy Simplex fire alarm systems. It communicates over a single wire pair — the base and detector head draw both power and data from the MAPNET II loop. The 2098-9652 features an integrated alarm LED and uses DIP switches for address assignment, supporting up to 127 bases per circuit on 4020/4100+ panels (128 on CDT systems). This is a reconditioned unit with a one-year warranty.

Key Features

• Protocol: MAPNET II addressable loop communication
• Integrated alarm LED for visual indication at the detector location

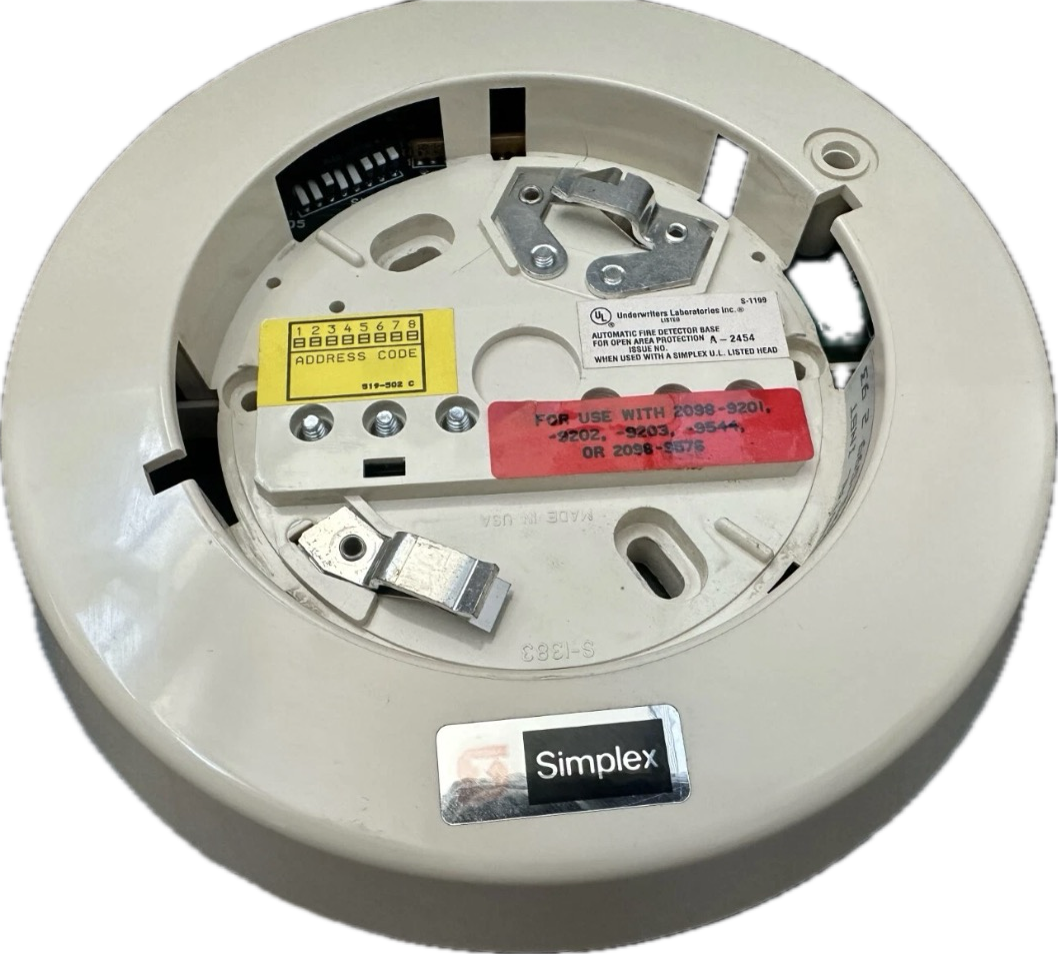

• DIP switch addressing — up to 127 devices per circuit (4020/4100+), 128 per CDT circuit
• Accepts photoelectric, ionization, and thermal 2098-series detector heads
• Compatible heads: 2098-9201, 2098-9202, 2098-9203, 2098-9438, 2098-9478, 2098-9576
• Single wire pair loop — power and data over MAPNET II
• Dimensions: 6 × 6 × 1.5 in
• Discontinued by Simplex; reconditioned stock available with 1-year warranty

Compatible Panels

• Simplex 4100+ (4100-0110, MAPNET II card)
• Simplex 4020 (4020-0110, 4020-7003)
• Simplex 2120 CDT (2120-7041, MAPNET II)

Compatible Detector Heads

• 2098-9201 (Photoelectric)
• 2098-9202 (Photoelectric)
• 2098-9203 (Photoelectric)
• 2098-9438 (Ionization)
• 2098-9478 (Ionization)
• 2098-9576 (Thermal)

Life Safety Consultants has been sourcing hard-to-find legacy Simplex parts since 2002. Call us at 1-888-557-0558 or email sales@lifesafetycom.com.
