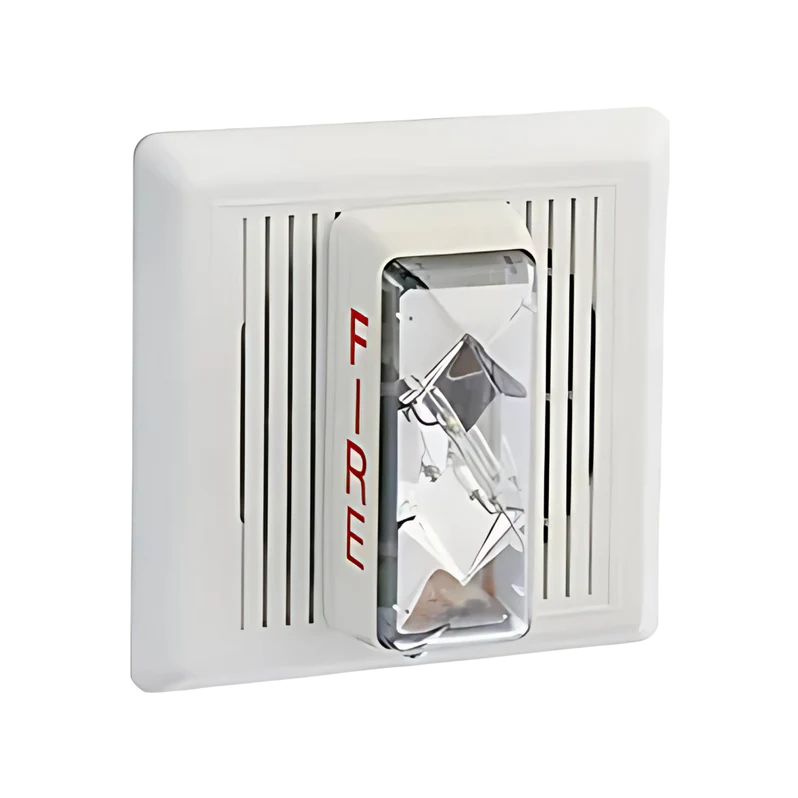

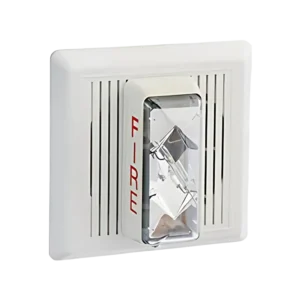

The Edwards 2452THS-110-W is a 110 cd field-programmable temporal horn-strobe in the 2400 Series. First, this is a 24 VDC notification appliance for fire alarm NAC circuits. Specifically, it combines a low-frequency horn with a xenon strobe in a single white flush-mount housing. Therefore, it serves spaces that need both audible and visual notification from one device.
What the Edwards 2452THS-110-W horn-strobe does
This horn-strobe outputs a piercing low-frequency tone in the standard NFPA 72 temporal-three pattern. As a result, it cuts through moderate ambient noise in offices, schools, and corridors. In addition, the xenon strobe flashes at 60 fpm with 110 cd effective intensity. Then field programming lets installers select high or low horn output (95 dB or 85 dB at 1 m) to match the space.
Verified specs
- Function: temporal horn-strobe (combined audible + visual)
- Strobe intensity: 110 cd
- Strobe flash rate: 60 fpm (1 Hz)
- Sound output: 95 dB (high) / 85 dB (low) at 1 m, field selectable
- Tone: low-frequency temporal-three (NFPA 72)
- Light source: xenon
- Input voltage: 24 VDC nominal, 0.329 A
- Housing: high-impact plastic, white, flush mount
- Dimensions: 5.5″ L × 5.5″ W × 2.375″ D
- Operating temperature: -31°F to 150°F
- Listings: UL 1971 (strobe), UL 1638 (visual), UL 464 (audible)
- Sync: exceeds UL requirements (<10 ms over 2 hours) with a Genesis sync source
Part number decode
Specifically: 2452 = 2400 Series temporal horn-strobe base; THS = Temporal Horn-Strobe; 110 = 110 cd strobe intensity; W = white housing. For the red-housing version, see the 2452THS-110-R. For lower-intensity 15/75 cd options, see the 2452THS-15/75-W and 2452THS-15/75-R.
Wiring notes
However, the 2400 Series horn requires a constant (not pulsed) voltage on the signal circuit. Therefore, do not wire this device to a coded or interrupted output. As a result, the temporal pattern is generated internally regardless of how the panel drives the NAC.
Need help selecting the right Edwards part? Call Life Safety Consultants at 1-888-557-0558 or email sales@lifesafetycom.com. Our team specializes in fire alarm and industrial signaling replacement parts.
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 6 × 5 × 5 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Strobe |
