Edwards (24DC12) 24 volt dc to 12 v dc converter power supply. provides 12v dc output from 24vdc input to power 12vdc security devices. output rated at 1adc. provides ground isolation for grade a bell housing supervision. actual supervision done by other modules (siga-se)

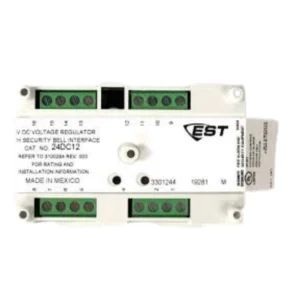

The Edwards 24DC12 is a 24 VDC to 12 VDC converter module that lets fire alarm panel power feed 12-volt security devices. First, this is a multi-function module — it converts voltage and provides ground isolation in one assembly. Specifically, it accepts 24 VDC input and outputs regulated 12 VDC at up to 1 A. Therefore, integrators can power 12-volt accessories from the same 24 VDC fire alarm power supply without needing a separate transformer.

What the Edwards 24DC12 module does

This module steps 24 VDC down to 12 VDC for downstream loads. As a result, devices such as motion sensors, glass-break detectors, and door contacts can run from the panel’s existing battery-backed power. In addition, it provides electrical ground isolation for UL609 / ULC-S303 Local Burglar alarm bell housings. Then a supervising module — typically a SIGA-SE on Signature Series — monitors the supervised side for integrity.

Verified specs

• Function: 24 VDC to 12 VDC converter with ground isolation
• Input voltage: 24 VDC
• Output voltage: 12 VDC, regulated
• Output current: 1 A DC maximum
• Ground isolation: UL609 / ULC-S303 compatible for bell housing supervision
• Mounting: 2-gang; fits SIGA-MP Series mounting plates inside cabinets and wallboxes
• Supervision: handled externally (e.g., SIGA-SE Supervised Output module)

Where the 24DC12 fits

Specifically, the 24DC12 supports Grade A and B Local Mercantile premises, Grade A Police Station Connect with basic line security, and Central Station Grade B installations. Therefore, it is most often used when a Signature Series fire alarm system also needs to drive a Local Burglar alarm bell housing or 12 VDC security accessory loop. As a result, integrators can consolidate fire and security power on one cabinet without compromising supervision.

What this module is NOT

However, the 24DC12 is not itself a supervised output module — the actual supervision is performed by a separate device such as the SIGA-SE. Furthermore, it does not include its own enclosure; it mounts inside the host cabinet or wallbox using SIGA-MP plates.
