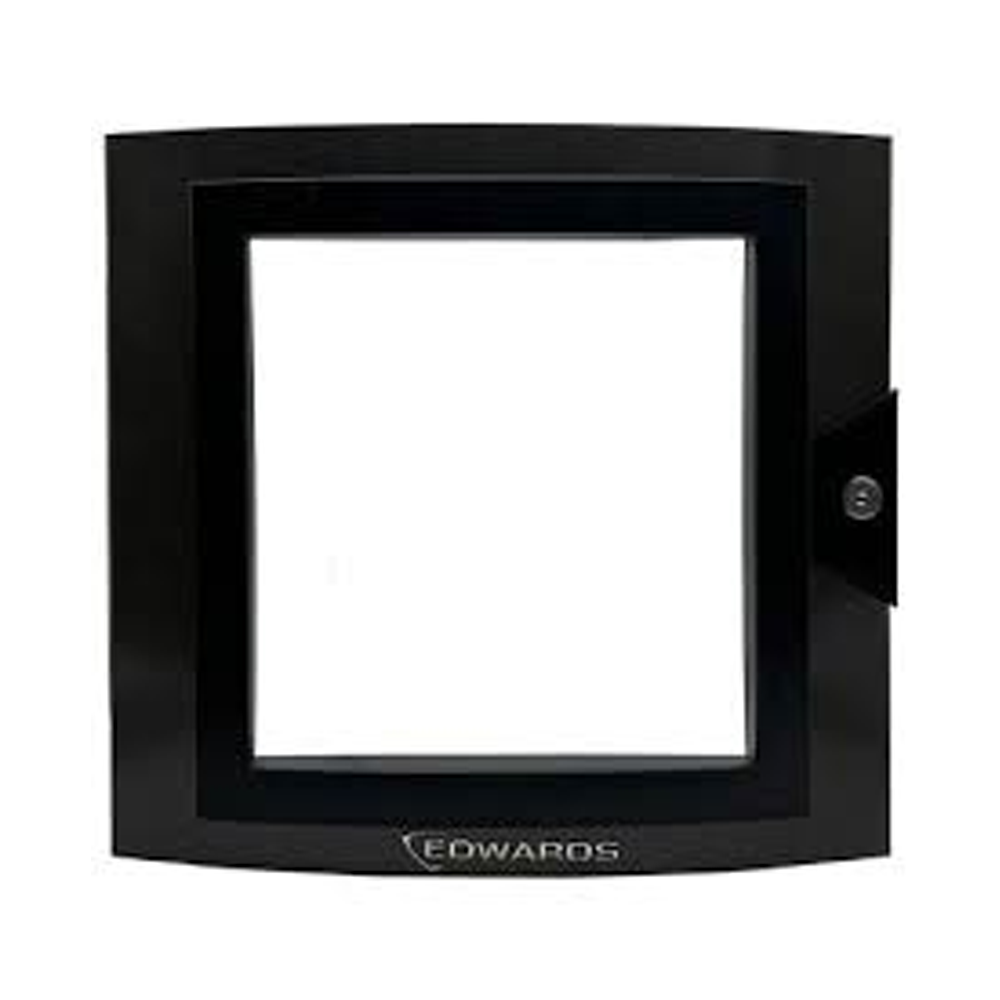

Edwards (4-4ANN) Metallic bronze annunciator supports 4 slots (1 row of 4) . comes with 4-anncpu, metallic bronze outer door and black inner door. order wall mounting assembly 4-4annmt, required network controllers 4-net-xx series, any user interfaces and filler plates separately.

The Edwards 4-4ANN is an EST4 remote annunciator with four control-display module spaces. First, it provides compact front-panel system status and control on the EST4 network. In addition, the assembly ships with a 4-ANNCPU, metallic bronze outer door, and black inner door. As a result, the base unit installs quickly in small lobbies and mechanical rooms.

Edwards 4-4ANN Configuration

The cabinet holds 4 spaces arranged as a single row of 4. Therefore, designers typically pair an LCD display (which takes two spaces) with two indicator or switch modules. Also, indicator LEDs are user-selectable from five colors at configuration time. Furthermore, the 4-LCDANN color touchscreen ships separately when an LCD is required.

Mounting and Network Wiring

The 4-4ANNMT wallbox is required and ships separately. Specifically, it supports both surface and semi-flush mounting in a single assembly. In addition, the annunciator requires one or more 4-NET-XX series SFP network controllers. However, end-user interface modules and filler plates ship separately as well.

System Listings and Build

The EST4 system carries UL 864 10th edition, ULC-S527-11, and FM listings as a complete assembly. Therefore, the 4-4ANN is covered under those listings when installed in its listed wallbox. Ship weight: 11.5 lb (5.22 kg). Door color: metallic bronze (Pantone PMS P 171-16 C). Wallbox color: black.
