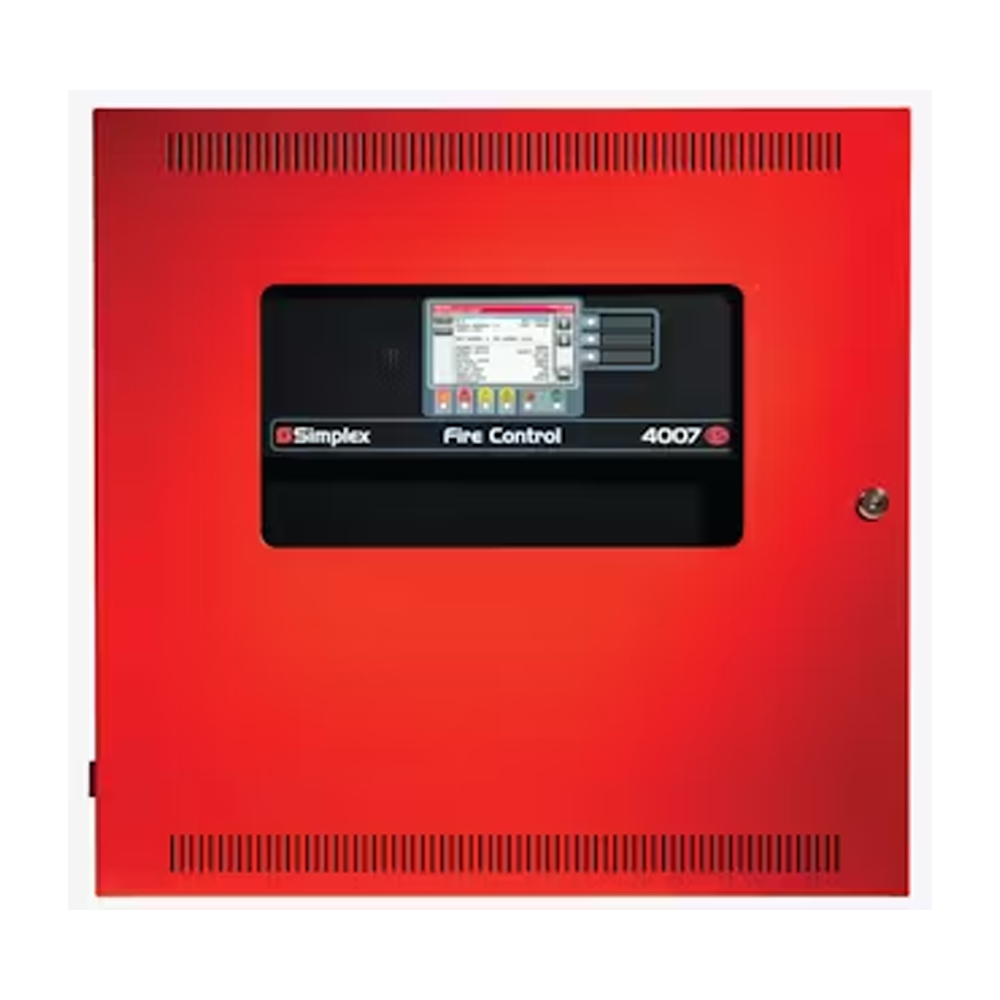

The Simplex 4007-9102BA represents a cutting-edge hybrid fire alarm control panel (FACP) within the advanced 4007es Platinum series, engineered for comprehensive life safety management in complex commercial and institutional environments. This robust addressable panel delivers sophisticated fire detection and notification capabilities, designed specifically for integration with large-scale facility monitoring systems and advanced emergency response infrastructures.
Engineered for mission-critical applications, the 4007-9102BA hybrid FACP provides seamless communication across networked fire detection zones, supporting sophisticated addressable device management and real-time event tracking. Its platinum-level architecture enables comprehensive system monitoring for multi-floor commercial facilities, healthcare complexes, educational campuses, and mission-critical industrial installations where precise fire detection is paramount.
Key Features
- Hybrid addressable control platform supporting up to 2,500 intelligent detection points
- Integrated network communication capabilities with full redundancy and fault tolerance
- Compatible with legacy and contemporary fire detection device protocols
- Advanced event logging and diagnostic reporting with integrated TCP/IP networking
- Fully compliant with NFPA 72, UL 864, and UL 268 fire alarm system standards
- Configurable intelligent circuit management with programmable zone and device mapping
Specifications
- Input Voltage: 120/240 VAC, 50/60 Hz
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
- Panel Mounting: Standard 19″ rack or wall-mounted configuration
- Communication Protocols: SLC, Class A/B, Ethernet, RS-485
The 4007-9102BA is designed for professional fire alarm technicians and systems integrators requiring a high-performance, scalable fire alarm control platform with extensive diagnostic and monitoring capabilities. Its modular architecture allows for seamless expansion and customization across diverse commercial installation environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 31 lbs |
|---|---|
| Dimensions | 26.75 × 26 × 10.5 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Module |
