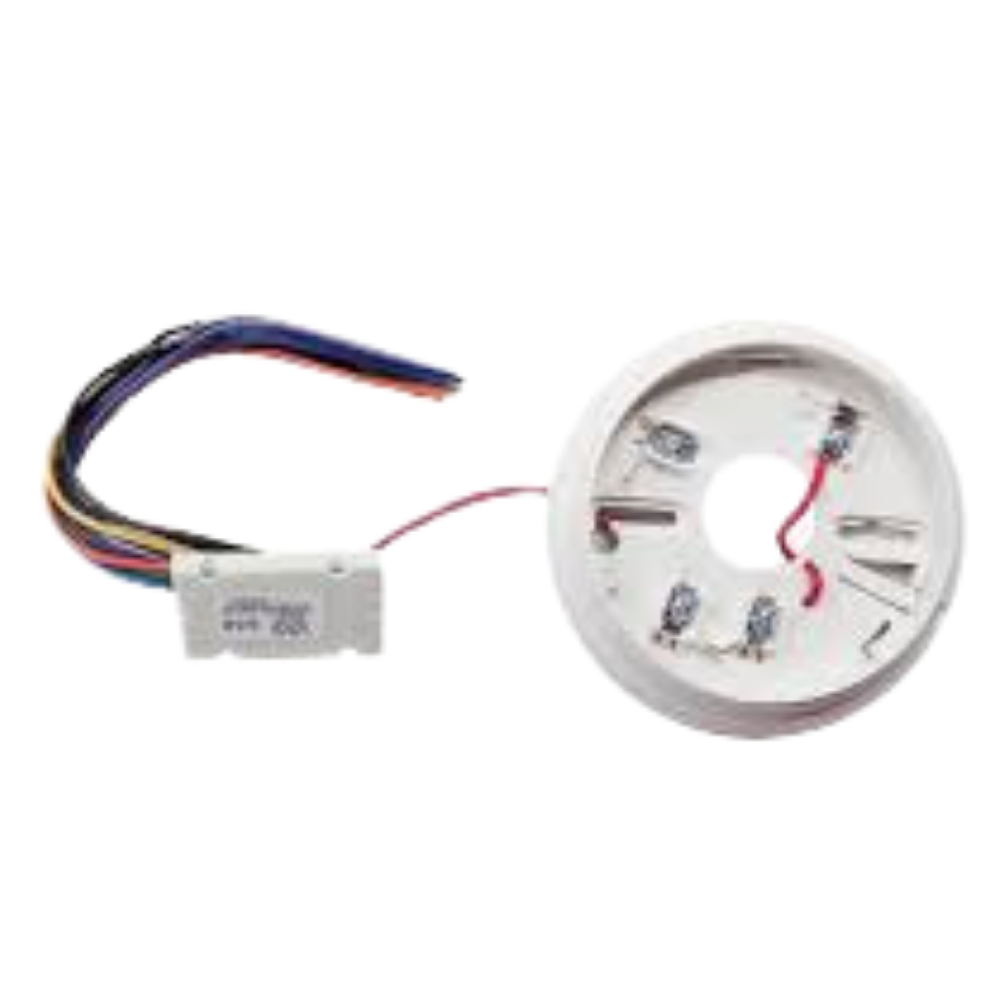

The Simplex 4098-9683E SSD Two-Wire Detector Relay Base “E” represents an advanced interconnection solution for intelligent addressable fire detection systems, engineered to provide robust signal transmission and relay functionality in complex commercial fire alarm infrastructures. Designed specifically for professional fire alarm installers and facility safety managers, this detector base integrates seamlessly with Simplex addressable detection platforms, offering comprehensive monitoring and signaling capabilities.
Utilizing sophisticated two-wire communication protocol, the 4098-9683E supports advanced addressable detection environments across commercial, industrial, institutional, and high-rise applications. Its precision-engineered relay mechanism enables direct interface with HVAC shutdown systems, emergency control functions, and networked fire alarm panel communications, ensuring comprehensive life safety response strategies.
Key Features
- Fully compatible with Simplex addressable fire alarm detection systems and intelligent control panels
- Supports both two-wire and four-wire detector configurations with seamless signal transmission
- Integrated relay mechanism for direct interface with auxiliary control and monitoring circuits
- Engineered for reliable performance in challenging environmental conditions
- Compliant with UL 268 and NFPA 72 fire alarm system standards
- Designed for rapid installation with standard mounting configuration
Technical Specifications
- Operating Voltage: 24VDC nominal fire alarm circuit voltage
- Relay Contact Rating: 2A @ 30VDC resistive
- Environmental Operating Range: 32°F to 120°F (0°C to 49°C)
- Humidity Tolerance: 10% to 93% non-condensing
- Base Material: High-temperature flame-retardant polymer
Typical installation contexts include commercial office complexes, healthcare facilities, educational institutions, data centers, and industrial manufacturing environments requiring sophisticated fire detection and monitoring capabilities. The 4098-9683E provides fire alarm professionals with a reliable, standards-compliant solution for integrating intelligent detection devices into comprehensive life safety systems.
Designed for professional installers familiar with Simplex addressable platforms, this detector base requires proper configuration with compatible intelligent fire alarm control panels and adherence to manufacturer’s installation guidelines and local building codes.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.39 lbs |
|---|---|
| Dimensions | 5.2 × 5 × 2.1 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Detector Base |
