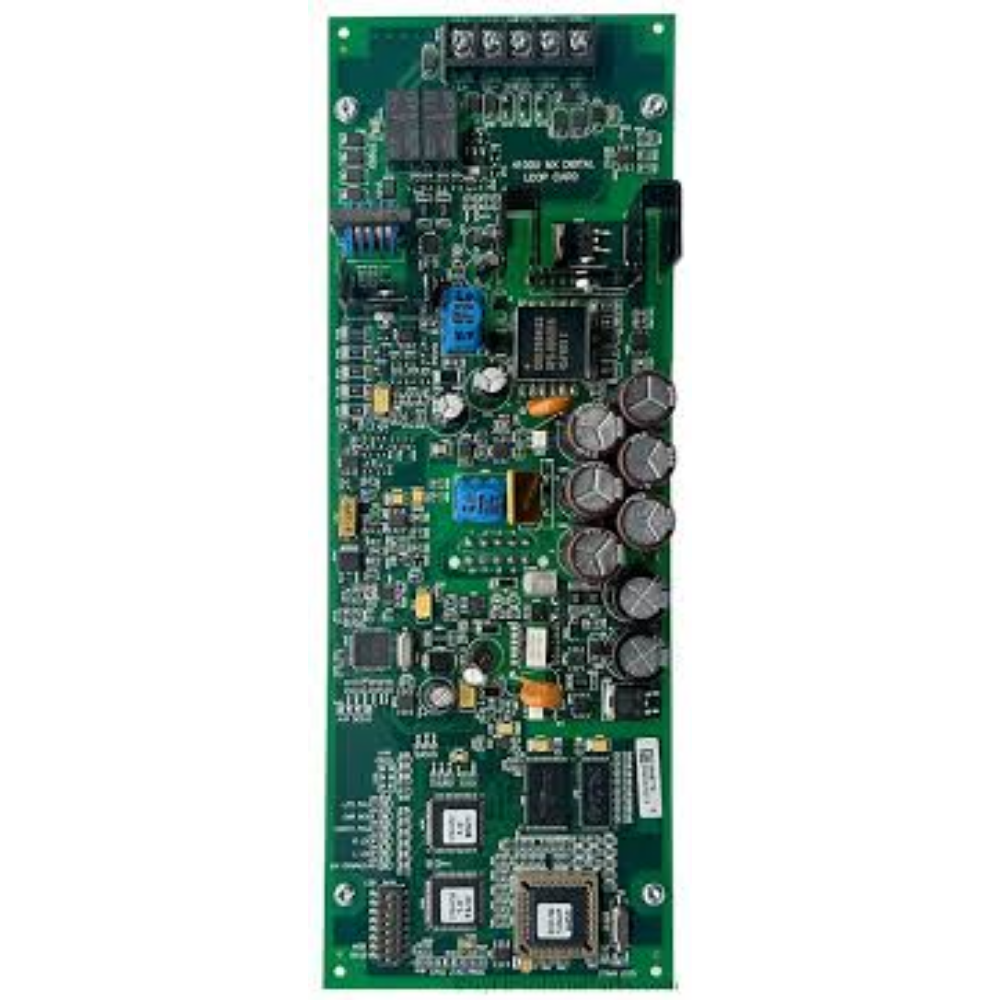

The Simplex 4100-6077 Mx Loop Module is a precision-engineered input/output device designed for advanced fire alarm and life safety systems in complex commercial and industrial environments. This robust addressable module provides critical communication and monitoring capabilities within Simplex intelligent fire detection networks, enabling seamless integration with addressable control panels and expanding system-wide monitoring capabilities.
Engineered for reliability in mission-critical applications, the 4100-6077 loop module supports comprehensive device communication and status reporting across fire alarm circuits. Fire alarm technicians and facility managers can leverage this module’s sophisticated design to enhance detection zones, monitor auxiliary devices, and ensure comprehensive life safety coverage in high-occupancy commercial settings such as office complexes, healthcare facilities, educational institutions, and industrial campuses.
Key Features
- Fully compatible with Simplex TrueSite and MapNet addressable fire alarm control panels
- Supports bidirectional communication with multiple device types on intelligent signaling loops
- Configurable input/output zones for flexible system design and expansion
- Low-voltage operation with minimal power consumption and integrated short-circuit protection
- UL Listed and FM Approved for critical fire detection and notification applications
- Compact form factor facilitating streamlined installation in electrical panels and control enclosures
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: Less than 300 µA
- Alarm Current: Configurable per device requirements
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
- Dimensions: Approximately 6″ x 4″ x 1.5″
Certified to meet rigorous industry standards including NFPA 72 National Fire Alarm and Signaling Code, UL 268 Smoke Detectors for Fire Protective Signaling Systems, and UL 464 Audible Signal Appliances. Recommended for use in comprehensive fire detection systems requiring precise, reliable device communication and status monitoring.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 13.2 × 10.5 × 3 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Module |
