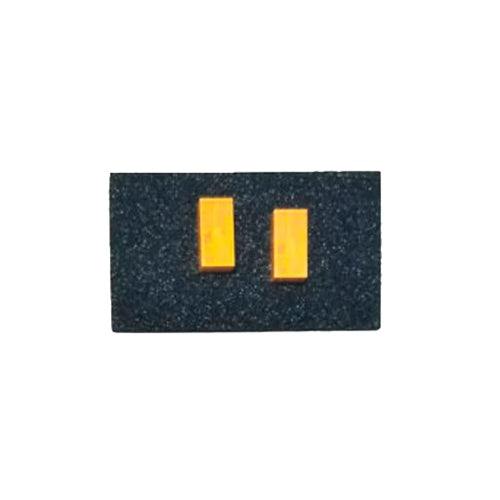

The Fire-Lite 411RK is a relay kit for the Fire-Lite 411UDAC digital alarm communicator. It adds two programmable Form-C relays to the unit. As a result, the communicator signals external systems on specific conditions.
Fire-Lite 411RK features
Both relays are fully programmable. For example, you can map them to fire alarm, fire supervisory, or process monitoring. In addition, options include host panel trouble, total communication trouble, and DACT trouble. Therefore the kit adapts to many monitoring needs.
Each Form-C relay operates at a nominal 12 VDC. The dry contacts are rated 2.0 A at 30 VDC resistive. Alternatively, they carry 0.5 A at 30 VAC resistive. The kit is designed specifically for the 411UDAC.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 6 × 3.5 × 2 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Relay Module |
