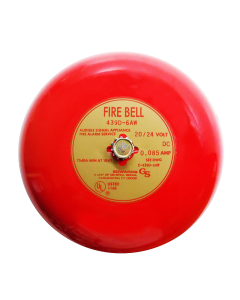

The Edwards 439D-6AW-R is a 6-inch (150 mm) vibrating fire-alarm bell, 24 VDC, diode-polarized, finished in red. Specifically, it produces a continuous bell tone for fire-alarm notification on commercial and industrial systems.
First, the diode-polarized circuit ensures the bell only responds to correct-polarity voltage. Then the striker strikes the gong in rapid-fire as long as current is applied. As a result, the bell delivers a sustained audible tone until the panel removes power.
Verified Specifications
- Gong diameter: 6 inches (150 mm)
- Operating voltage: 20–24 VDC
- Current draw: 0.085 A
- Sound output: 82 dB
- Polarity: diode polarized (DC only)
- Color: red, epoxy powder-coated finish
- Gong material: selected alloy steel
Mounting
Furthermore, the supplied mounting plate installs in several ways. Specifically, it fits directly on a surface, on a single-gang box, on a 3-1/2 in (89 mm) octagon box, on a 4 in (102 mm) octagon box, or on a 4 in (102 mm) square electrical box. As a result, installers have flexibility for both new construction and retrofit work.
Listings
The 439D-6AW-R carries the following listings: CSFM Listed, UL Listed, FM Approved, and MEA Listed. Specifically, it is listed for use with fire-alarm control equipment.
Sibling: 439D-6AW
However, the 439D-6AW (no -R suffix) is the gray-finish equivalent. Therefore, choose the -R when red finish is required (most fire-alarm specifications) and the base 439D-6AW when a gray housing is acceptable.
Order or Get Application Help
To order the Edwards 439D-6AW-R, call 1-888-557-0558. Also, you can email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3.5 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 3.5 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
