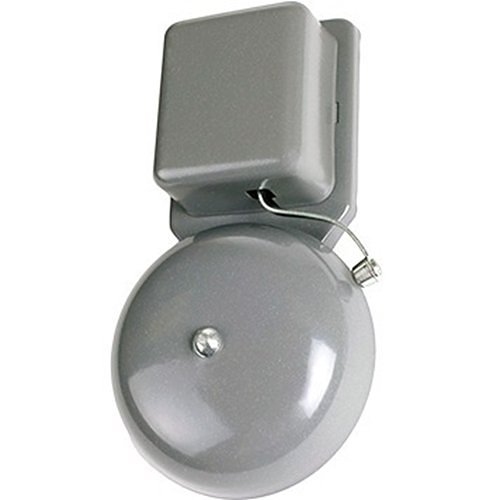

The Edwards 55-6AM is a 6-inch AC general-purpose vibrating bell. It runs on 8 VAC or 6 VDC, 60 Hz with a 0.8 to 1.0 A current draw. The exposed striker hits a 6-inch gray gong.
This bell is built for low-cost, light-duty installations. As a result, it suits factories, institutions, offices, and OEM-built equipment. The enclosed grounded terminal and case keep wiring safe in industrial environments.
Key Features — Edwards 55-6AM
- 6-inch (152 mm) gong, gray finish
- Single-magnet vibrating bell with exposed striker
- 8 VAC or 6 VDC operation at 0.8 to 1.0 A
- Power: 4.8 VA (DC) / 8 VA (AC) — low current permits long wire runs
- Sound output: 84 dB AC / 74 dB DC at 10 feet
- Enclosed grounded terminal block and case
- Dimensions: 10-5/8 in H x 6 in W x 2-5/8 in D
- 60 Hz AC rating
Where the 55-6AM Fits
The 55-6AM is a general-purpose signaling bell. For example, it covers shift-change signals, paging-system alerts, security warnings, and process-line status. In addition, the low current draw makes it well-suited to long wire runs in larger facilities.
Important: This Is a Light-Duty General-Purpose Bell, Not a Fire-Alarm Bell
The 55-6AM is not UL 464 listed as a fire-alarm audible signal. Therefore, do not specify it as a fire-alarm NAC device. For fire-alarm bells, use the Edwards 439D-6AW or 439D-6AW-R series instead. As a result, the 55-6AM is best left to general industrial signaling work.
Order the Edwards 55-6AM
Life Safety Consultants stocks the 55 Series. To confirm voltage match or compare to a fire-alarm-rated alternative, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 11 × 6.5 × 2.5 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
