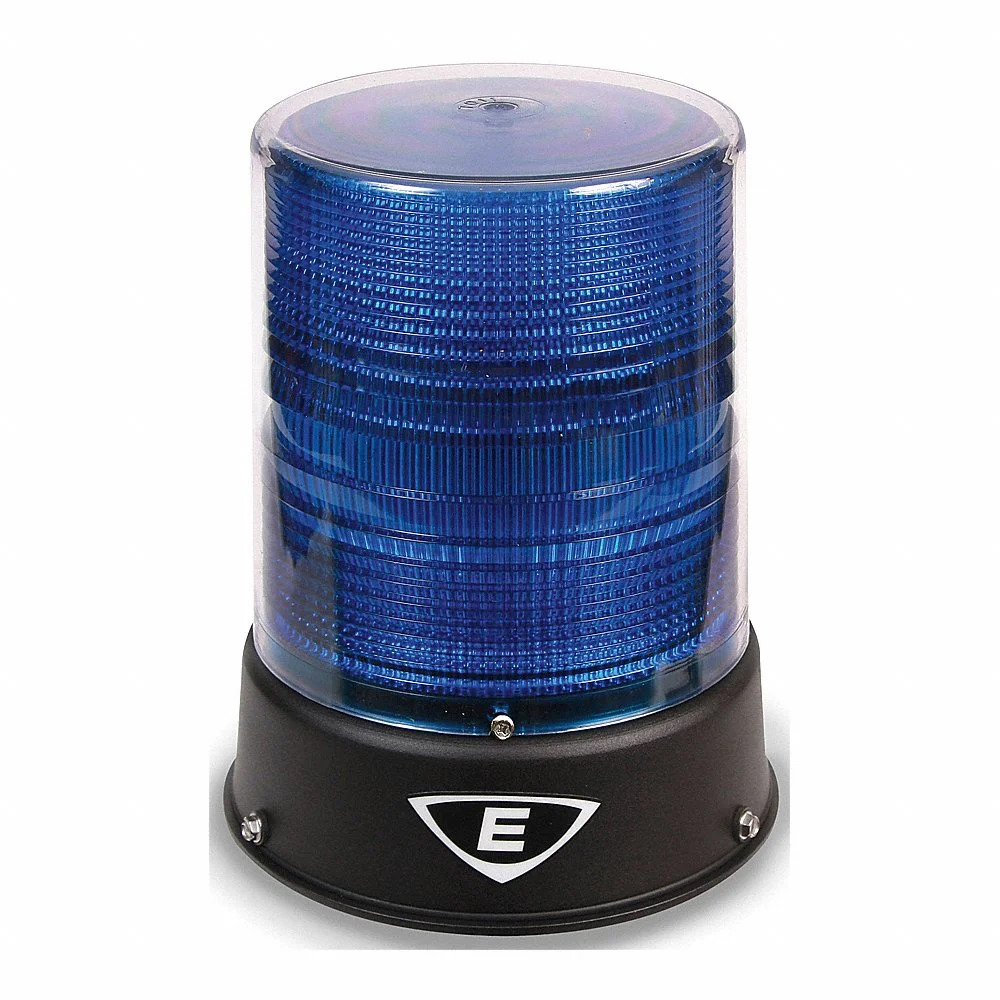

The Edwards 57PLEDMB24ADB is a 57 Series Polaris LED beacon with a blue lens and a black cast base. It is multi-voltage: 12-24 VDC or 24 VAC. The lens is rated NEMA Type 4X and IP66 for indoor or outdoor use.
This beacon delivers a 360-degree light pattern. As a result, it stays visible from any angle on a process line or in a high-noise area. The user can select from 16 flash or rotation patterns, including a steady-on mode.
Key Features — Edwards 57PLEDMB24ADB
- Multi-voltage operation: 12-24 VDC or 24 VAC
- 16 user-selectable flash and rotation patterns, including steady-on
- Pattern selection via Hidden In Plain Sight (HIPS) switch
- 360-degree beam — visible from all directions
- Blue lens, black cast metal base
- NEMA Type 4X and IP66 environmental ratings
- Operating temperature: -35 °C to +66 °C (-31 °F to +151 °F)
- Solid-state LED light engine — long service life
- UL 1638 and cUL Listed
How the 57PLED Naming Works
First, the “57PLED” identifies the Polaris LED beacon in the 57 Series housing. Then the “M” indicates multi-voltage. Next, the lens-color letter follows. For example, MB = blue, MA = amber, MG = green, MM = magenta, MR = red, MW = white. Then “24” is the nominal voltage. Finally, the trailing “ADB” indicates a black base — change to “ADG” for a gray base.
Where the 57 Series Polaris Fits
This beacon suits industrial and commercial signaling. For example, it covers process alarms, machine status, hazard warnings, security signaling, and high-noise area indication. In addition, the NEMA 4X / IP66 housing handles washdown areas, exterior loading docks, and similar environments. As a result, the unit is widely used in manufacturing, water treatment, and wastewater facilities.
Important: This Is an Industrial Beacon, Not a Fire-Alarm Device
The 57PLEDMB24ADB is UL 1638 listed (visual signal appliances). However, it is not UL 1971 listed for fire-alarm visual notification. Therefore, do not specify it on a fire-alarm NAC where UL 1971 candela ratings are required. As a result, the Polaris LED is best used for industrial signaling, not fire-alarm notification.
Order the Edwards 57PLEDMB24ADB
Life Safety Consultants stocks the 57 Series Polaris LED beacon family. To pick the lens color, base color, or voltage option for your application, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 12.5 × 8 × 7 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
