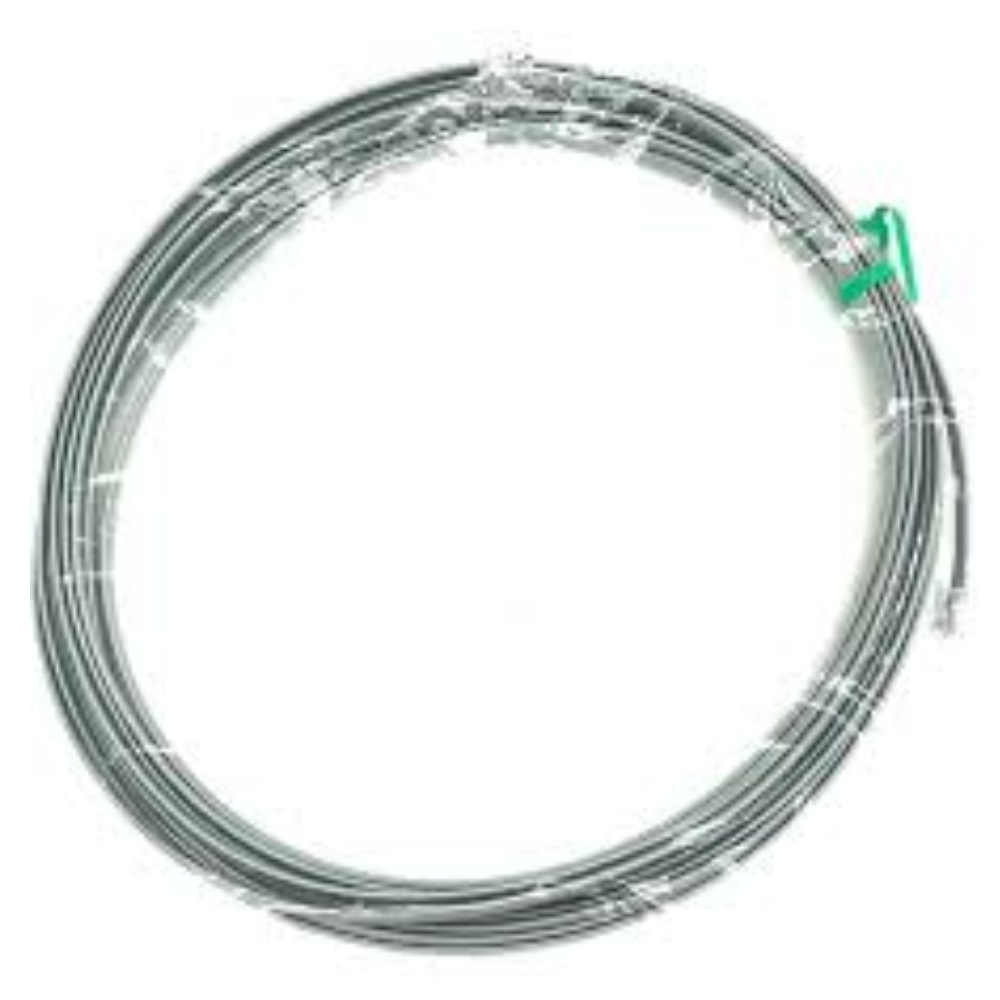

The Gamewell 6100-0076 is a 20-foot standard RJ11 (6-pin modular) download cable for Gamewell-FCI fire alarm control panels. It connects a panel’s programming port to a laptop running the manufacturer’s configuration software.
First, plug the RJ11 end into the panel’s programming jack. Then, attach the other end to your programming adapter (typically the Gamewell-FCI 6100-0077 RJ11-to-DB9 serial converter, sold separately). As a result, the technician can program, diagnose, and capture event history from the panel on site.
Gamewell 6100-0076 Specifications
Cable length is 20 feet. The connectors are RJ11 6-pin modular on both ends. Additionally, the 20-foot length gives the technician room to position a laptop on a service table while the cable runs to the panel’s programming jack.
Typical Pairing
- Gamewell-FCI 6100-0077 — RJ11-to-DB9 (9-pin female) serial converter, panel-to-computer (sold separately)
- Compatible with serial COM-port programming workflows for Gamewell-FCI panels (USB-to-serial adapters may be required on modern laptops without native serial ports)
Usage Notes
The 6100-0076 is a passive cable. As a result, no electrical or system-level listings apply at the cable level. However, it is the manufacturer’s recommended download cable for Gamewell-FCI panel programming sessions and ensures the correct 6-pin modular pinout. Furthermore, having a known-good cable on the service truck eliminates a common source of programming-session troubleshooting.
Order or Get Application Help
Since 2002, Life Safety Consultants has stocked Gamewell-FCI programming tools and accessories. To order the Gamewell 6100-0076 20-foot RJ11 download cable — or to bundle it with the 6100-0077 RJ11-to-DB9 adapter for a complete laptop-to-panel setup — call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 0.5 × 7 × 7 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Replacement Part |
