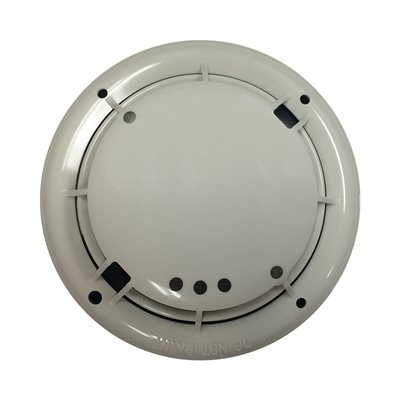

The Hochiki ACD-V multi-sensor represents advanced detection technology for comprehensive fire protection in commercial and institutional environments. Designed as an intelligent addressable sensor, this multi-criteria device combines photoelectric smoke detection, fixed temperature heat sensing, and optional carbon monoxide monitoring into a single compact unit. Its versatile architecture allows seamless integration with analog addressable fire alarm control panels across various commercial building applications.
Engineered for precision and reliability, the ACD-V utilizes advanced algorithmic processing to analyze environmental conditions and distinguish between genuine fire events and nuisance alarms. The sensor’s multi-sensor design provides enhanced detection capabilities compared to single-technology devices, offering faster and more accurate threat identification in complex environments such as office spaces, healthcare facilities, educational institutions, and industrial settings.
Key Features
- Tri-technology detection: Photoelectric smoke, fixed temperature, and optional CO sensing
- Compatible with conventional addressable fire alarm panels using standard communication protocols
- Environmental compensation algorithms reduce false alarm potential
- Low-profile design facilitates discreet mounting in suspended ceilings and architectural spaces
- UL 268 and UL 521 listed for comprehensive compliance with fire protection standards
- Operating temperature range from 32°F to 100°F with humidity resistance up to 93% non-condensing
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 250µA typical
- Alarm Current: 6mA maximum
- Mounting Base: Standard 4-inch electrical box compatible
- Dimensions: 4.5″ diameter, 2.1″ height
Recommended for use with addressable fire alarm control panels from manufacturers including Hochiki, Edwards, Notifier, and Silent Knight. Compliant with NFPA 72 fire alarm and signaling code requirements for commercial fire detection systems.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 2 × 4 × 4 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Sensor |
