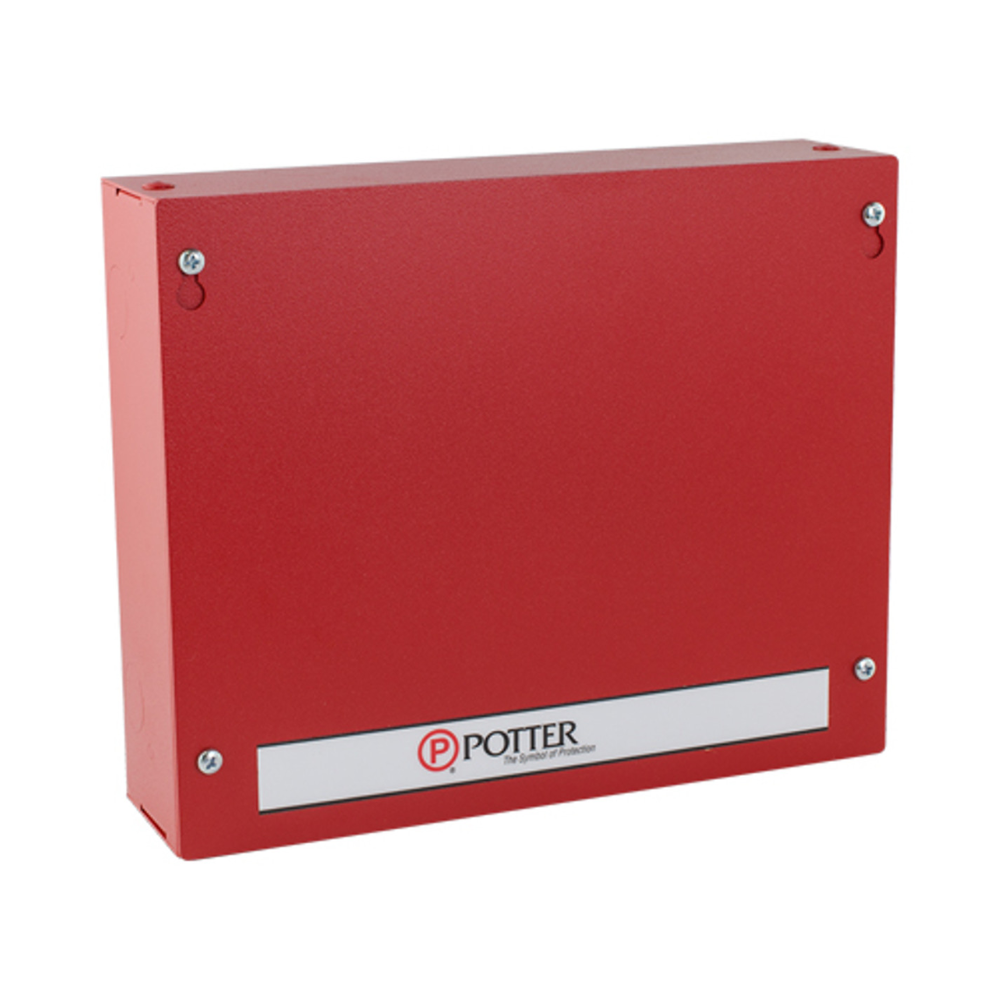

The POTTER AE-2 is a two-card accessory expansion enclosure for Potter addressable fire alarm panels. It accommodates up to two standard-size PAD100-SLCE, RLY-5, or other stacker-bracket-sized expansion cards.
First, the AE-2 mounts to a wall using four #8-sized screws. Then expansion cards mount inside using #6-32 hex nuts. As a result, technicians can add SLC or relay capacity outside the main fire alarm control panel.
The enclosure is built from durable 18-gauge steel. In addition, its compact footprint suits installations with limited wall space. Specifically, the AE-2 measures 9 3/4″ wide by 8″ tall by 2 1/2″ deep.
POTTER AE-2 Specifications
- Card capacity: 2 (PAD100-SLCE, RLY-5, or other stacker-bracket cards)
- Dimensions: 9 3/4″ W × 8″ H × 2 1/2″ D
- Material: 18-gauge steel
- Mounting: Four #8 screws (one per mounting hole)
- Card fastening: #6-32 hex nuts
When to Order the AE-2
Order the AE-2 when you need to add an SLC expander (PAD100-SLCE) or a 5-relay card (RLY-5) outside the main Potter panel. For larger expansions, Potter also offers the AE-8 (8 cards) and AE-14 (14 cards) enclosures.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 21.35 lbs |
|---|---|
| Dimensions | 15 × 15 × 15 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Replacement Part |
