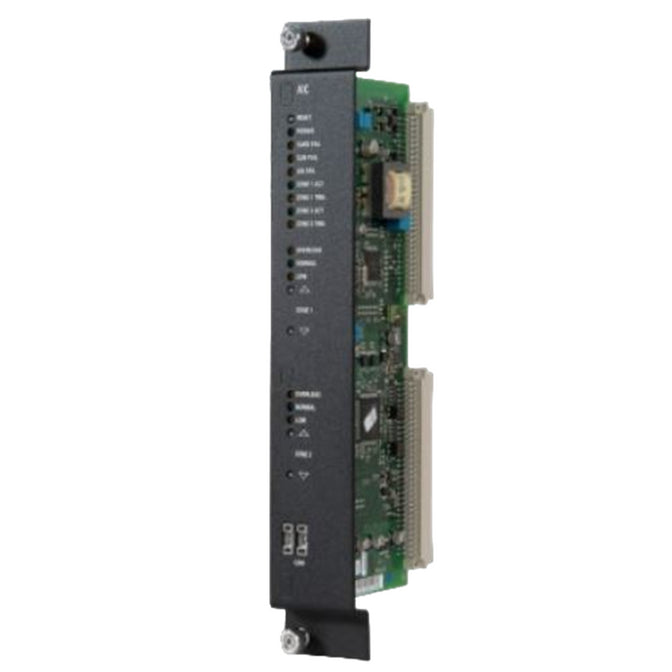

The Siemens audio input card, Model AIC, feeds external audio sources into a Siemens voice evacuation system. Specifically, it serves FireFinder XLSV and Desigo Fire Safety Modular panels. As a result, facilities can route paging or recorded audio through the fire alarm speakers.
The AIC provides two independent, isolated analog audio inputs. In addition, it includes two dry-contact inputs that activate each audio channel separately. Therefore, each input can switch on automatically through system logic or manually from the voice-control panel. Typical sources include a PBX telephone interface for convenience paging, CD players, or tape recorders.
Siemens Audio Input Card Features
- Two independent analog audio inputs, each transformer isolated
- Each input separately supervised for loss of signal
- Two external switch (dry-contact) inputs to activate the audio inputs
- Separate analog-to-digital converter and level indicator per input
- Input levels adjustable on the card or in Zeus configuration software
- Diagnostic LEDs and downloadable firmware
- CAN network card; addresses 1 through 99
- UL 864 9th Edition Listed and ULC Listed; FM, CSFM, and NYC Fire Department Approved
Mounting and System Limits
The AIC occupies one card slot. Specifically, it mounts in a Model CC-2 or CC-5 card cage. These card cages install inside CAB-1, CAB-2, or CAB-3 enclosures. Furthermore, the card’s CAN network connection must come from one Model DAC-NET. A single FireFinder XLS node supports a maximum of two AIC cards.
Specifications
- Manufacturer: Siemens (Part Number 500-035300)
- 24V backplane current: 25mA; 24V standby current: 50mA
- 6.2V backplane current: 25mA per active channel
- Nominal audio input: 0dB, 1mW (0.775V RMS) at 600 ohms differential
- Audio input range: -12dBu to +15dBu (27dB control range)
- Dry-contact input: 24V at 10mA
Order the Siemens AIC from Life Safety Consultants
Need help confirming fit for your panel? Then reach out before you order. For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 15 × 10 × 4 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Replacement Part |
