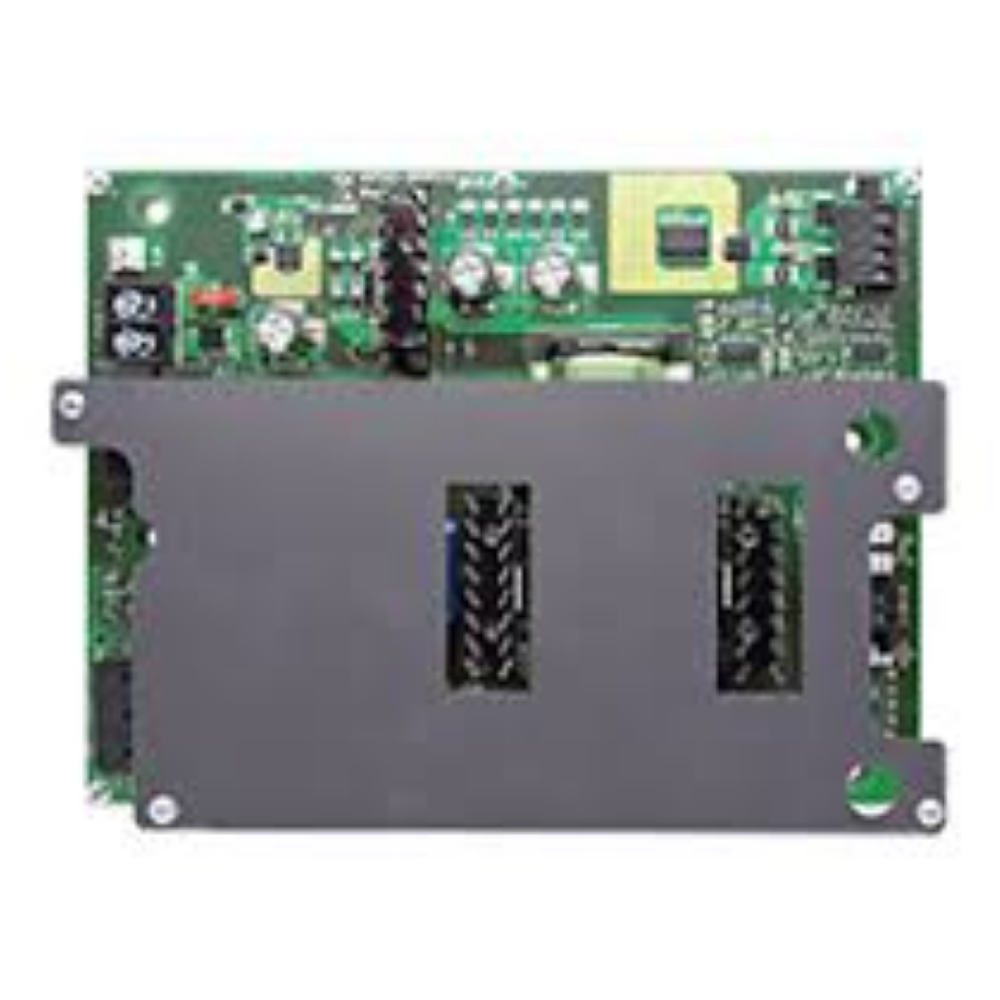

The Notifier APS2-6R is a 150-watt switching auxiliary power supply. Specifically, it delivers 24 VDC filtered output for Notifier fire alarm systems. As a result, integrators can add notification or auxiliary 24 V loads without overloading the host panel.
What the Notifier APS2-6R provides
The APS2-6R delivers 6.0 A total at 24 VDC. However, the continuous rated output is 4.0 A. In addition, the supply splits power across two power-limited output circuits and one non-power-limited rail.
First, output circuit 1 (TB2-1, TB2-2) supplies 3.0 A at 24 VDC, power-limited. Then, output circuit 2 (TB2-3, TB2-4) supplies another 3.0 A at 24 VDC, power-limited. Also, J9 provides the full 6.0 A (4.0 A continuous) non-power-limited.
Supervision and reporting
The APS2-6R reports AC fail over the SLC through its onboard relay contacts. Furthermore, the AC fail indication is configurable. Specifically, jumpers JP2 and JP3 select immediate (default), 1-2 hour, or 2-3 hour delay.
The battery supervision circuit uses a 32 VAC, 10.0 A fast-acting automotive minifuse (F2). Therefore, field service can replace it with a common automotive fuse.
Specifications
- Notifier part number: APS2-6R
- Type: switching auxiliary power supply, 150 W
- Primary AC input: 120 VAC, 50/60 Hz, 2.9 A
- 24 VDC output: 6.0 A total, 4.0 A continuous
- Power-limited circuits: 2 × 3.0 A @ 24 VDC (TB2)
- Non-power-limited output (J9): 6.0 A (4.0 A continuous)
- Battery fuse F2: 32 VAC, 10.0 A fast-acting automotive minifuse
- AC fail delay: immediate (default), 1-2 hr (cut JP2), 2-3 hr (cut JP2 + JP3)
- Relay contacts (TB4): AC Fail supervision over the SLC
- Dimensions: 8.625″ × 6.625″ × 2.375″ (21.91 × 16.83 × 6.03 cm)
- Weight: approximately 2 lb (0.91 kg)
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.6 lbs |
|---|---|
| Dimensions | 12 × 9.5 × 4 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Power Supply |
