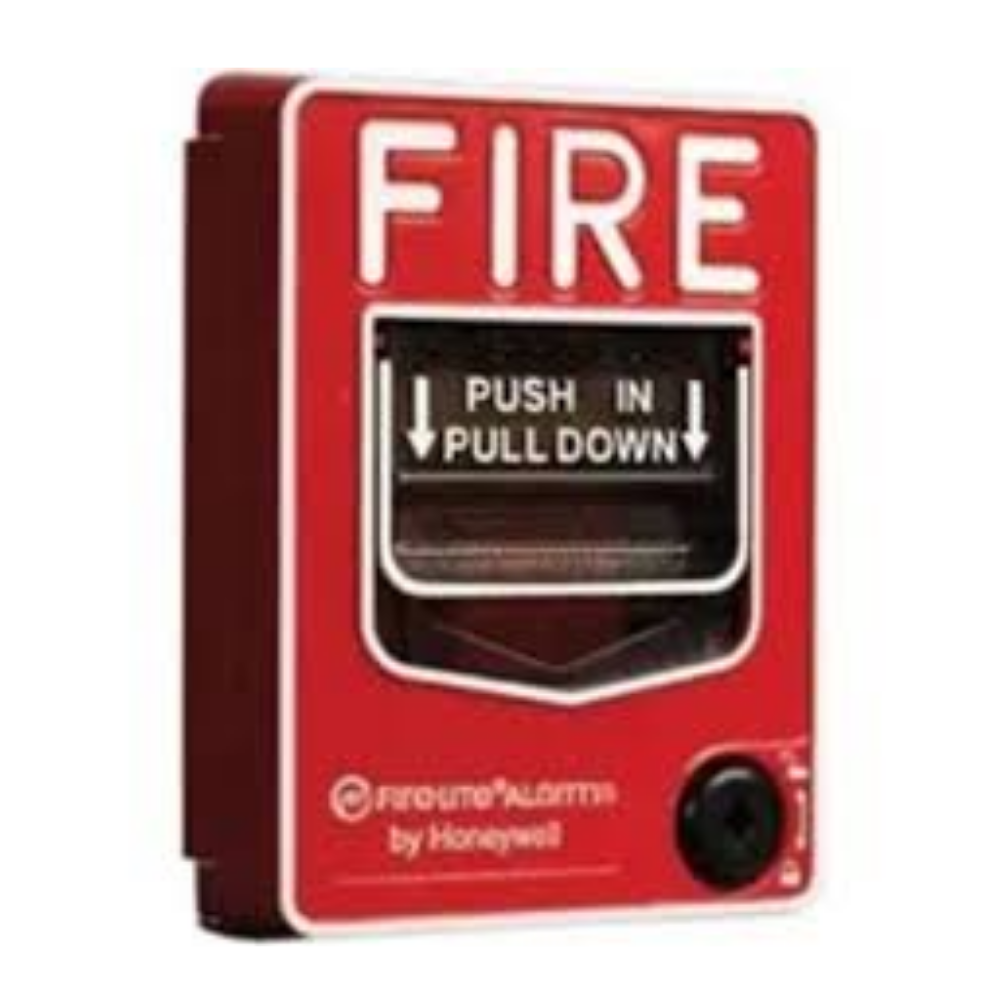

The Fire-Lite BG-12LAO is a dual-action, non-coded manual pull station listed for outdoor use. Specifically, it ships with an approved outdoor gasket. In addition, it includes a key-lock reset and auxiliary contacts.
Therefore, the BG-12LAO suits exterior building walls, parking structures, and unconditioned spaces. Also, it carries the dual-action design that meets ADA reach and force requirements.
How the Fire-Lite BG-12LAO Operates
Dual-action means the user lifts the cover, then pulls down the handle. As a result, accidental activations drop significantly.
Furthermore, the activated station latches in the down position. Therefore, the alarm condition holds until a key resets it.
In addition, the operating instructions and Braille text are molded directly into the handle. As a result, the station meets ADA controls and operating-mechanism guidelines.
Outdoor Listing and Backbox Options
The BG-12LAO is listed for outdoor applications when paired with the right backbox. Specifically, use either the WBB weatherproof back box or the SB-I/O surface-mount plastic backbox.
Therefore, installations gain weather protection without sacrificing pull-station performance. Also, the gasket and sealed cover keep moisture out of the station body.
Wiring Inputs
The pull station provides one normally-open (N/O) alarm initiating contact for the panel. In addition, a second set of auxiliary contacts is rated up to 3 A at 30 V (AC or DC).
Key Features
- Dual-action design — lift cover, then pull down handle
- Listed for outdoor use with WBB or SB-I/O backbox
- Key-lock reset
- Terminal block wiring
- Auxiliary contacts for ancillary functions
- Approved outdoor gasket included
- Braille text and molded operating instructions
- Meets ADA 5 lb. maximum pull force
- UL 38 listed (Manually Actuated Signaling Boxes)
Specifications
- Operation: dual-action, non-coded, latching
- Reset: key-lock
- Alarm contact: one N/O initiating circuit
- Auxiliary contact rating: 3 A at 30 V (AC or DC)
- Color: red
- Outdoor backbox: WBB or SB-I/O (sold separately)
Order the Fire-Lite BG-12LAO
Life Safety Consultants stocks the Fire-Lite BG-12LAO with compatible backboxes. To order or confirm the right backbox for your installation, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 9 × 5.5 × 3 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Pull Station |
