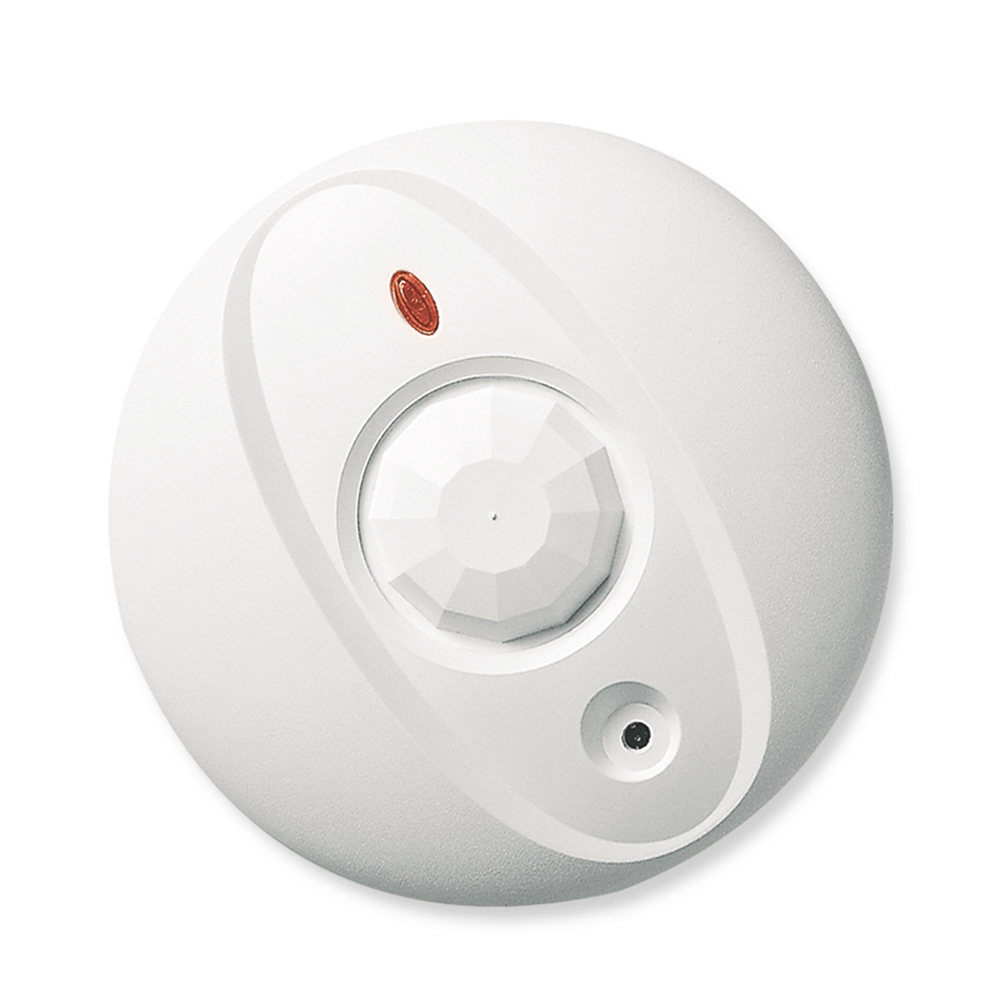

The DSC BV-500 is a ceiling-mount passive infrared motion detector with a Form A alarm contact. Specifically, it is part of the DSC Bravo 5 family for hardwired intrusion-detection systems, not fire alarm.
First, mount the BV-500 to the ceiling above the area to be supervised. Then, wire the Form A normally-closed alarm contact to a compatible DSC intrusion-panel zone input. As a result, the BV-500 reports motion events as a contact opening on the host security loop.
DSC BV-500 Detection Technology
The detector uses an advanced quad PIR element with a Fresnel lens for 360° coverage. In addition, Multi-Level Signal Processing (MLSP) provides consistent detection across the pattern. Furthermore, temperature compensation maintains catch performance at body-ambient temperatures.
Verified Specifications
- Detection type: ceiling-mount passive infrared, 360° coverage
- Sensor: advanced quad PIR with Fresnel lens
- Signal processing: patented Multi-Level Signal Processing (MLSP)
- Alarm contact: Form A (single normally closed)
- Sensitivity adjustment: normal or hostile environment settings
- Maximum ceiling height: 12 ft
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Relative humidity: 5% to 95% non-condensing
- High-level static and transient protection
- White light and RF immunity
Typical Application
Use the BV-500 on conventional zone loops for hardwired intrusion supervision. However, the BV-500 is not a fire-alarm device. Therefore, do not connect it to a fire alarm SLC or IDC loop.
Order or Get Application Help
To order the DSC BV-500 or confirm coverage at mounting height, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your installation details.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 5 × 5 × 1.8 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Module |
