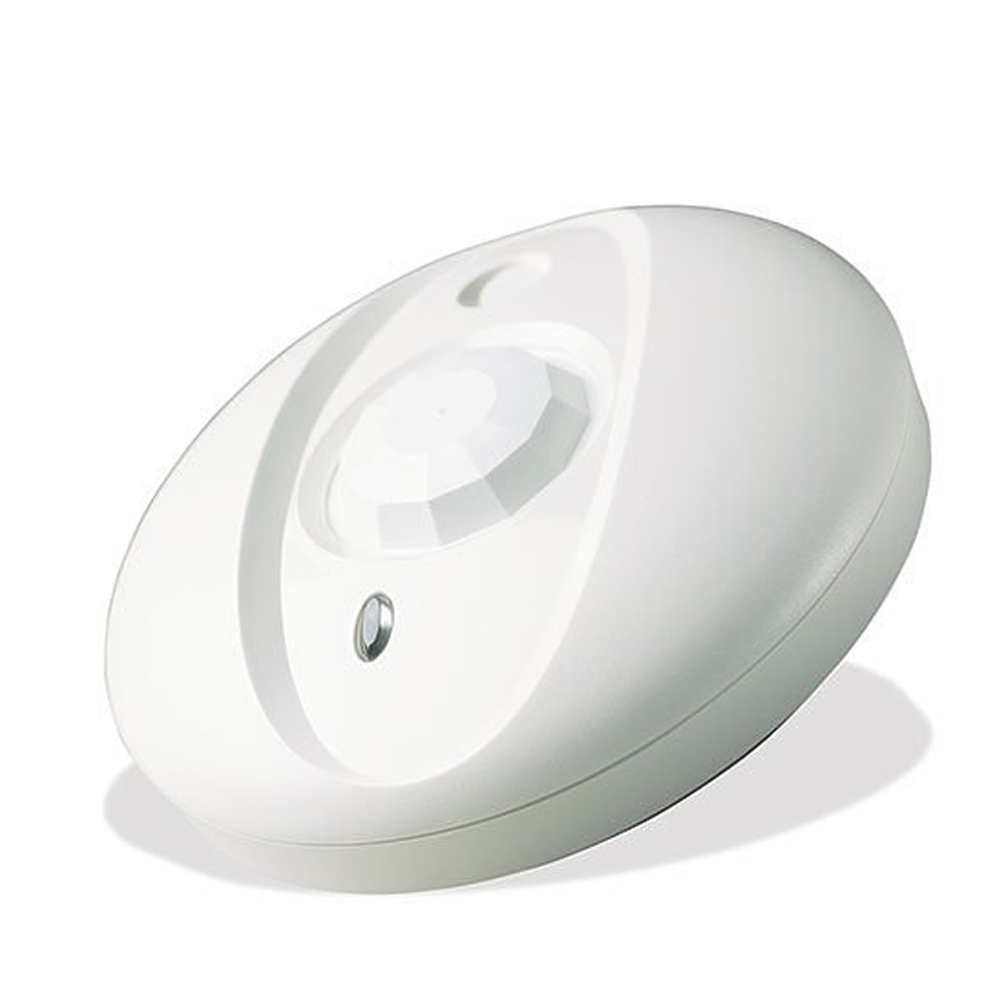

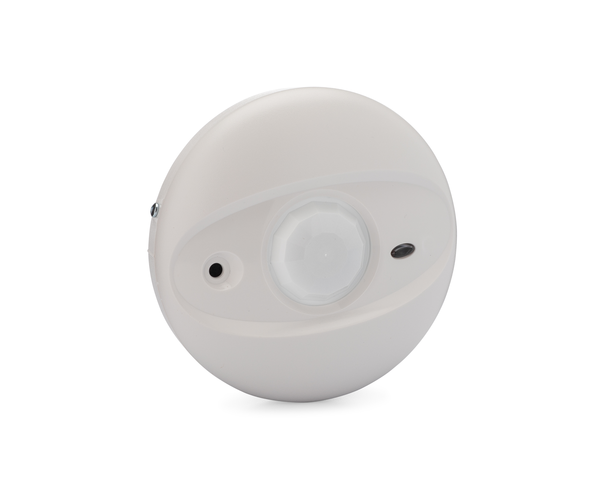

The DSC (BV-500GB) is a comprehensive dual-technology detection module engineered for high-precision intrusion and threat detection in commercial and institutional environments. This advanced PIR motion detector and glassbreak sensor provides integrated protection by combining passive infrared (PIR) movement sensing with acoustic glass breakage detection, delivering a robust security solution for complex facility protection scenarios.
Designed for seamless integration with addressable fire alarm and security panels, the BV-500GB offers professional installers a sophisticated, space-efficient detection module that meets stringent commercial safety standards. Its intelligent design enables simultaneous monitoring of physical movement and potential forced entry through glass surfaces, making it ideal for high-security applications such as corporate offices, healthcare facilities, educational institutions, and sensitive commercial spaces.
Key Features
- Dual-technology detection: PIR motion sensing and acoustic glassbreak detection in a single compact unit
- Wide-angle coverage with 40-foot PIR detection range and 25-foot glassbreak sensitivity
- Digital signal processing for advanced noise immunity and reduced false alarm potential
- Compatible with most addressable fire alarm control panels and security systems
- UL 268 and UL 464 listed for comprehensive compliance with fire and security standards
- Low-voltage operation (typically 9-15 VDC) with minimal current draw
Technical Specifications
- Input Voltage: 9-15 VDC
- Current Consumption: Typical 12mA @ 12VDC
- Detection Coverage: PIR – 40 ft radius, Glassbreak – 25 ft radius
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Mounting: Wall or ceiling mount with adjustable mounting bracket
Professional installers will appreciate the BV-500GB’s robust design, which supports NFPA 72 National Fire Alarm and Signaling Code requirements for comprehensive area detection. Its advanced digital signal processing minimizes nuisance alarms while maintaining high sensitivity to genuine security threats, ensuring reliable performance in diverse commercial environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Module |
