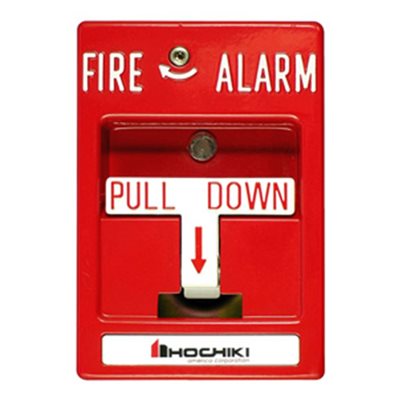

Hochiki (DCP-AMS) Single action addressable manual pull station

The Hochiki DCP-AMS is a single-action addressable manual pull station. An occupant initiates a fire alarm by pulling down on the handle.

First, the station communicates over Hochiki’s DCP protocol on the SLC loop. Then the address is programmable in onboard EEPROM. As a result, the panel identifies the exact pull-station location at activation.

Hochiki DCP-AMS Construction

The housing is made of 14 AWG cold-rolled steel painted with red enamel. In addition, the words “Fire Alarm” are embossed in 1/2″ tall contrasting-color text. Therefore the station meets standard wall-mount visibility requirements.

Key Specifications

• Activation: single-action — pull the handle down
• Operating voltage (SLC): 17 – 41 VDC
• Address: programmable in onboard EEPROM
• Status LED: bi-colored; blinks green during normal SLC communication
• Mounting: single-gang or 4″ square electrical box
• Reset: requires the CAT 30 key or a 1/8″ hex key (depending on model variant)
• Listings: UL Listed and CSFM Approved
• Single-action models meet ADA requirements when installed per code

When to Use the DCP-AMS

Furthermore, the DCP-AMS suits standard occupancy applications where a single-action pull is acceptable. For dual-action requirements, see the DCP-AMS-LP (Lift and Pull) variant.
