Ditek (DTK-NETMS) Replacement surge module for rm24nets

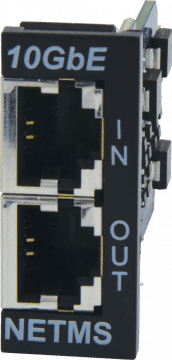

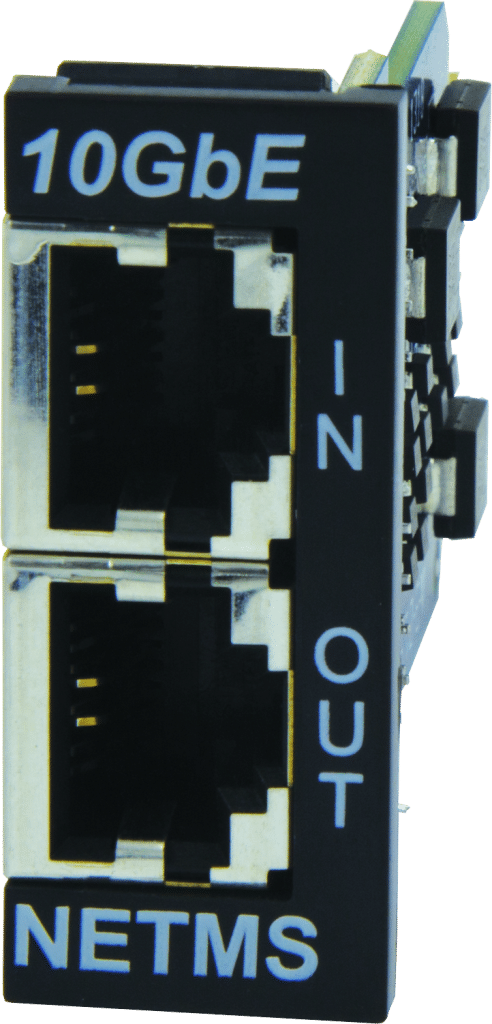

The Ditek DTK-NETMS is a rapid-replacement plug-in module for the Ditek DTK-RM24NETS 24-channel rack-mount surge protector. Specifically, it protects one shielded Ethernet or PoE circuit. Furthermore, modules swap from the front of the rack. As a result, replacement after a strike is fast — no need to remove the rack housing.

First, the DTK-NETMS uses a hybrid SAD + GDT topology. Therefore, it clamps fast transients at the gas-discharge stage and the silicon avalanche diode stage together. In addition, the module handles all four pairs in a CAT5e, CAT6, or CAT6A cable. Specifically, the surge current rating is 20 kA per pair. As a result, the module supports up to 10 GbE without signal degradation.

Also, the DTK-NETMS is PoE compatible across the full IEEE PoE range. Specifically, that includes 802.3af (15.4 W), 802.3at (30 W), 802.3bt Type 3 (60 W), and 802.3bt Type 4 (100 W). Furthermore, the DTK-RM24NETS housing can mix DTK-NETMS modules with DTK-EXTMS PoE-Extender modules. Therefore, mixed-protocol rack installations are supported in the same 1U chassis.

Ditek DTK-NETMS Verified Specifications

• Service voltage: less than 60 V
• Clamping voltage: 75 V common-mode / 7.22 V differential-mode
• Protection modes: common (all) and differential (all)
• Surge current rating: 20 kA per pair
• Power handling: up to 144 W
• Data rate: up to 10 GbE
• Connection: shielded RJ45 female In/Out (on the rack chassis)
• Cable compatibility: CAT5e, CAT6, CAT6A
• IEEE PoE compatibility: 802.3af, 802.3at, 802.3bt Type 3, 802.3bt Type 4
• Standards compliance: CAT5e, EIA/TIA 568A, EIA/TIA 568B
• Operating temperature: -40°F to 158°F (-40°C to 70°C)
• Maximum humidity: 95% non-condensing
• Compatible housing: DTK-RM24NETS only
• Certifications: UL 497B
• Warranty: 10-year limited

Typical Applications

First, IP-camera and NVR head-end racks where many shielded Ethernet runs land at one location. In addition, PoE-injected wireless-access-point distribution. Also, VoIP system racks. Furthermore, audio-video over IP racks and PoE lighting controllers.

Important Application Note

The DTK-NETMS is a replacement module only. Specifically, it requires the DTK-RM24NETS 24-channel 1U rack-mount housing to function. As a result, a buyer who needs only one or two PoE protectors should consider the in-line DTK-MRJPOE (UTP) or DTK-MRJPOES (STP) instead. Also, the rack housing accepts up to 24 modules and supports mixed DTK-NETMS (Ethernet/PoE) and DTK-EXTMS (PoE Extender) populations.
