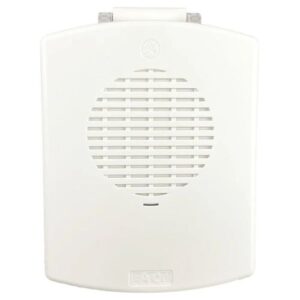

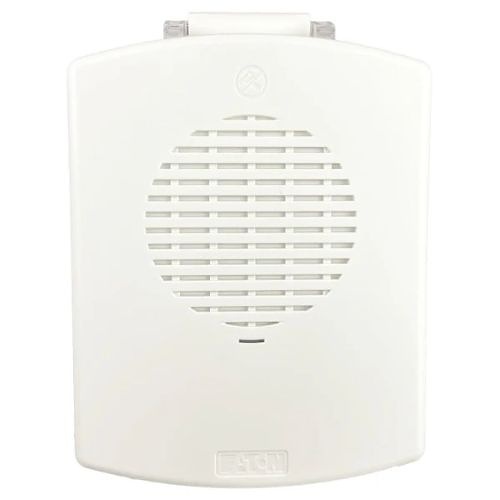

The Eaton EL3RSPK-NW is a Wheelock Eluxa outdoor speaker. It is rated NEMA 3R / IP54 for wet locations and ships with a 3R mounting plate. The housing is white and the lettering is blank.
First, the unit protects against rain, sleet, and ice in outdoor installations. Then, it delivers high-efficiency voice and tone reproduction on a 25 or 70 VRMS speaker circuit. As a result, building owners can extend an indoor voice-evacuation system to exterior areas like loading docks, garages, and covered walkways.
Eaton EL3RSPK-NW Speaker Output
The EL3RSPK-NW operates on field-selectable 25 VRMS or 70 VRMS audio. In addition, the wattage tap is field selectable from 1/8 watt up to 2 watts (5 W at 70 V). Therefore, one part number covers a range of coverage needs without changing inventory.
Environmental and Mounting
- NEMA 3R / IP54 weatherproof enclosure
- Operating temperature: -40°F to 150°F (-40°C to 66°C) at 95% RH
- Pre-wire capable mounting plate (included)
- Indoor or outdoor, wall or ceiling installation
- White UV-stabilized housing, no lettering
- #12 to #18 AWG screw terminals
Listings and Standards
Speakers in the Eluxa platform are UL 1480 listed for fire protective signaling. Also, the speaker meets the low-frequency requirements of UL 464 (520 Hz) to satisfy NFPA 72 sleeping-area provisions when the panel sends the 520 Hz tone. Furthermore, the unit is listed under CAN/ULC-S541 and CSFM.
Ordering the Eaton EL3RSPK-NW
Life Safety Consultants stocks Eaton/Wheelock outdoor Eluxa notification appliances. For pricing, the matching outdoor speaker-strobe (EL3RSPST series), or help sizing wattage taps for your coverage requirement, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 8.5 × 6.5 × 4 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Strobe |
