Siemens (EN-PAD) Black enclosure for pad-3 (part# 310-099073) ….combine with pad-3-mb to form pad-3

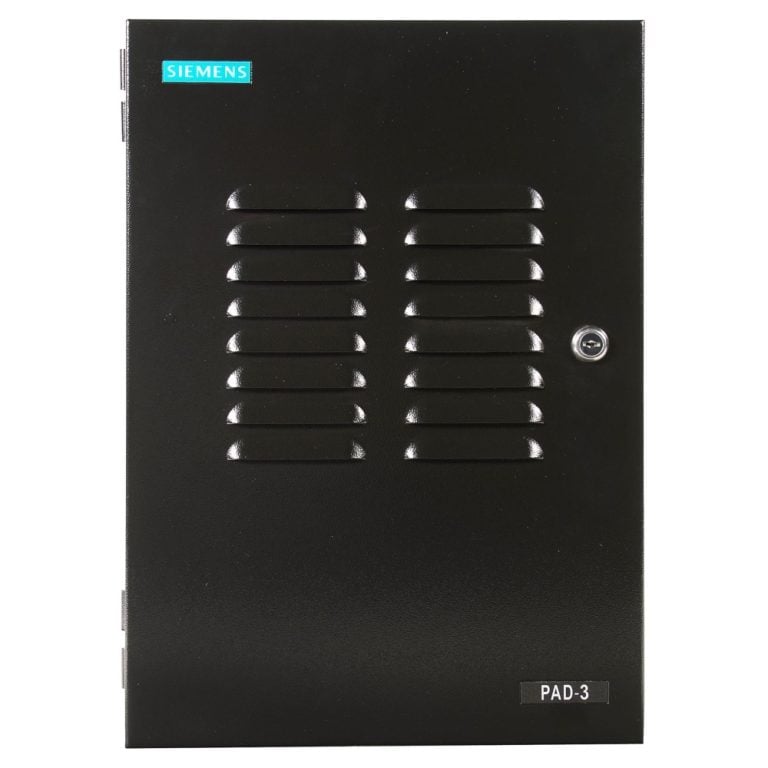

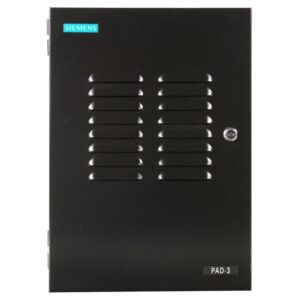

The Siemens EN-PAD (part number 310-099073) is the black enclosure for the PAD-3 distributed power supply. Specifically, it is the sheet-metal cabinet half of a complete Siemens PAD-3 NAC extender. Combine it with the PAD-3-MB main board (500-699080) to form a full PAD-3 unit.

The PAD-3 expands notification appliance circuit capacity on Siemens fire alarm control panels. Therefore, the EN-PAD is the right order when an existing enclosure is damaged or repainted. Alternatively, order the complete PAD-3 (599-699189) if you need board and enclosure together.

Siemens EN-PAD in the PAD-3 Series

Per the Siemens PAD-3 datasheet, the series breaks down as follows. First, PAD-3 (599-699189) is the complete extender with black enclosure. Then, PAD-3R (599-699190) is the same unit in red. In addition, PAD-3-MB (500-699080) is the main board alone. Finally, EN-PAD (310-099073) and EN-PADR (310-099150) are the black and red enclosures.

Specifications

• Siemens part number: 310-099073 (Model EN-PAD)
• Function: enclosure for PAD-3 distributed power supply / NAC extender
• Construction: sheet metal
• Color: black (red version is Model EN-PADR, 310-099150)
• Dimensions: 12.2″ W x 16.4″ H x 3.1″ D (31 x 41.7 x 7.9 cm)
• Battery space: houses up to a 7AH backup battery set
• System listing: PAD-3 series is UL 864 9th Edition Listed and ULC S527-11 Listed

For battery sets above 7AH, Siemens requires a System 3 enclosure or separate listed battery cabinet. Also, multiple PAD-3 modules can share a System 3 enclosure via the S3AP adapter plate.

Order the Siemens EN-PAD

Life Safety Consultants stocks the Siemens EN-PAD enclosure for PAD-3 systems. To confirm the right combination of board and enclosure, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
