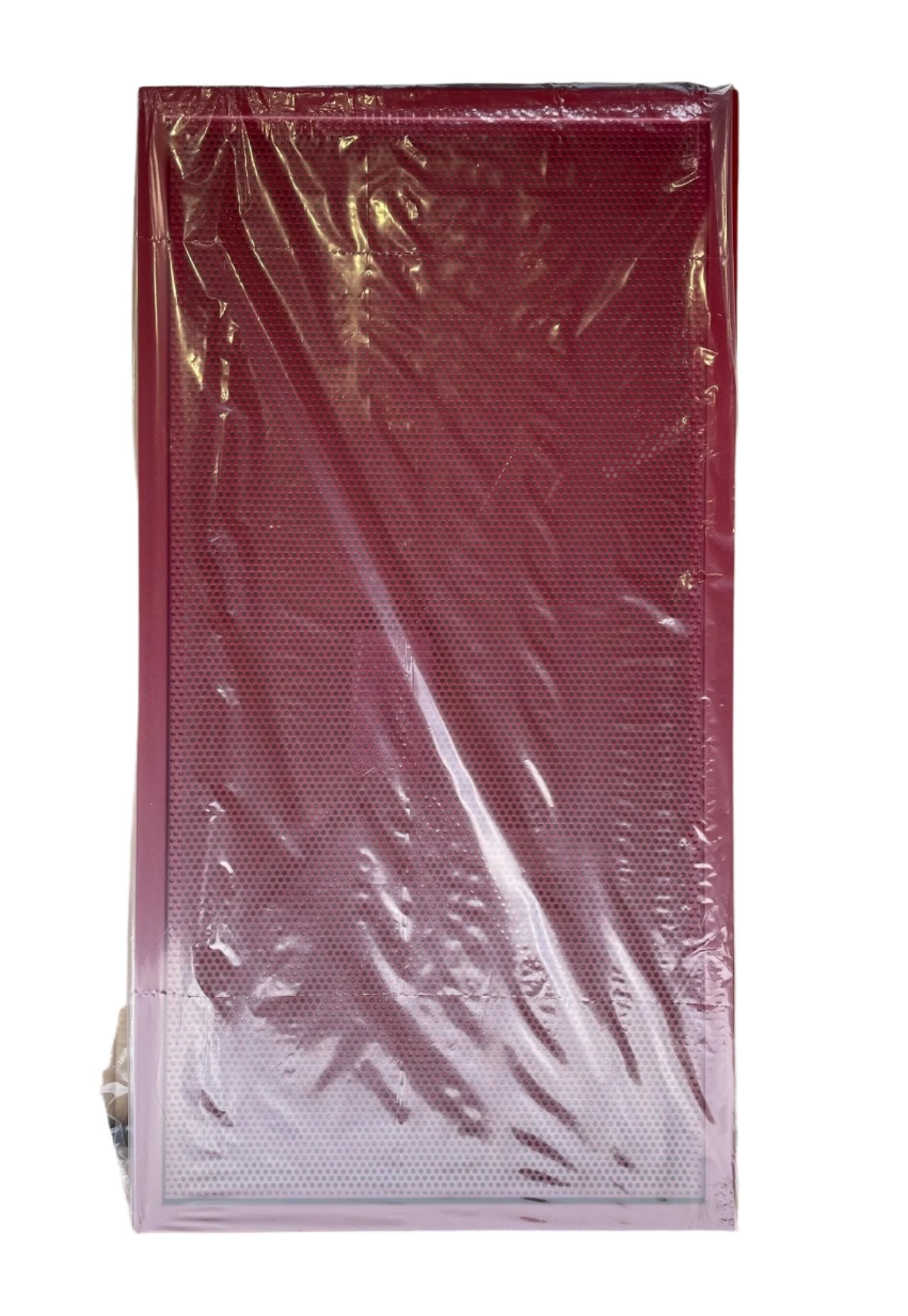

The Notifier EQDR-D4R is a four-tier vented equipment door for Notifier EQ Series cabinets, finished in red. It is built for installations that house power supplies, amplifiers, and field equipment that need airflow.
First, EQ Series cabinets are designed for distributed components. Specifically, they house items like power supplies, amplifiers, and multiple I/O modules. As a result, devices that generate heat get proper ventilation through the vented door face.
Therefore, a complete cabinet assembly takes three orders. For each cabinet, order one EQDR door, one matching EQBB backbox, and (optionally) a semi-flush trim ring. In addition, the door uses a pin-type hinge and ships with two keys plus mounting hardware.
Notifier EQDR-D4R Specifications
- Series: Notifier EQ Series (D-size, four tiers)
- Color: Red
- Style: Vented equipment door
- Material: 16-gauge steel
- Hinge: Pin-type
- Includes: two keys and mounting hardware
- UL Listed: S635
- ULC Listed: S635
When to Use the EQDR-D4R
Use the EQDR-D4R when an installation needs distributed power supplies, amplifiers, or I/O modules behind a vented red door. Pair it with the matching EQBB-D4 backbox. For a black version, see the EQDR-D4.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 24 lbs |
|---|---|
| Dimensions | 30.5 × 27.5 × 3.5 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Relay Module |
