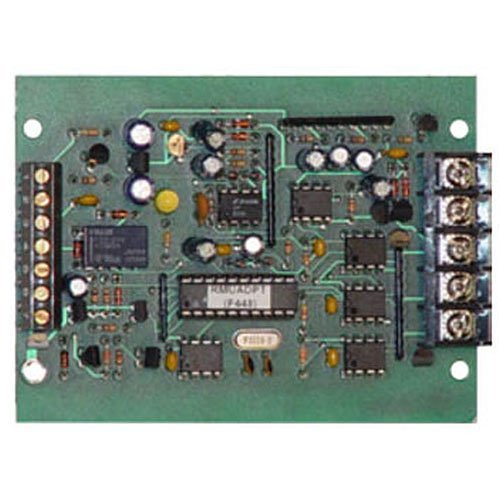

The Evax EVX-SC is a remote microphone supervisory card. The card installs in the Evax voice evacuation system.
First, the card watches the wiring path between the panel and each remote microphone. Then, it reports open, short, or ground faults back to the panel. As a result, the system stays code-supervised even when remote microphones are spread across a large building.
One supervisory card supports up to five remote microphones. Therefore, one EVX-SC is required per system regardless of how many of those five remote-mic positions are populated.
Evax EVX-SC Application
- One supervisory card per Evax voice evac system
- Supervises up to five remote microphone stations
- Detects open, short, and ground faults on remote mic wiring
- Required for installations using remote-mic stations under code supervision
Notes Before Ordering
Confirm the host system is an Evax voice evacuation panel. Also confirm the count and location of remote microphone stations before specifying.
Order the Evax EVX-SC
Life Safety Consultants stocks Evax voice evacuation parts. To order or check compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5.34 lbs |
|---|---|
| Dimensions | 6 × 6 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Module |
