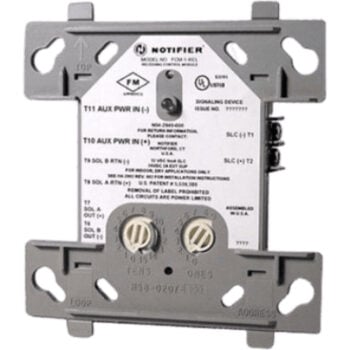

The Notifier FDRM-1 is an addressable dual-relay / dual-monitor module. Specifically, it serves Notifier ONYX® and CLIP Series fire alarm control panels. The module combines two Form C relay outputs and two Class B monitor inputs. As a result, one SLC device handles four independent functions.
What the Notifier FDRM-1 does on the SLC
First, the FDRM-1 sits on the intelligent two-wire SLC loop. Then, it exposes two Class B monitor inputs to the panel. In addition, it provides two Form C relay outputs back to the field. As a result, one module covers up to four supervised functions.
In addition, each relay output drives a green status LED. Furthermore, each monitor input drives a bi-color LED that the panel controls. Therefore, technicians read the device state at-a-glance during commissioning and service.
Addressing and protocol
- Protocol: FlashScan® (ONYX Series) and CLIP Series
- Address type: Rotary decimal switches on the module
- Addresses per module: Up to four; the base rotary setting assigns to relay output #1
- Address range: 1-99 on CLIP systems; 1-159 on FlashScan systems
Key specifications
- Manufacturer: NOTIFIER (Honeywell)
- Product type: Addressable dual-relay / dual-monitor module
- Relay outputs: Two independent Form C relays (SPDT, dry contacts)
- Monitor inputs: Two independent Class B circuits
- Relay supervision: Each output is intended for Form C switching applications that do not require load-circuit wiring supervision
- Indicators: Green LED per relay; bi-color panel-controlled LED per monitor input
- Loop type: Intelligent two-wire SLC
- Compatible panels: ONYX Series (NFS) and CLIP Series FACPs
Compatibility notes
- The module is sometimes listed as FDMR-1 in Honeywell literature; both names refer to the same dual-relay/dual-monitor device.
- Use up to four panel addresses per module — plan SLC loop loading accordingly.
- Form C relays are dry; the load circuit is not supervised by the relay output.
Order the Notifier FDRM-1 from Life Safety Consultants
In addition to the FDRM-1, Life Safety Consultants stocks the full Notifier addressable module line, including FMM-1, FRM-1, and FZM-1. As a result, the SLC loop ships from one supplier. Furthermore, our team can verify ONYX or CLIP firmware compatibility before you order.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6.5 × 6 × 2 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Relay Module |
