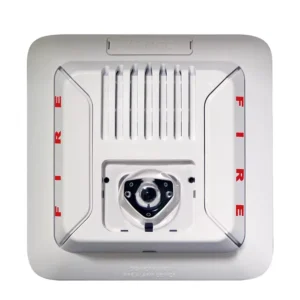

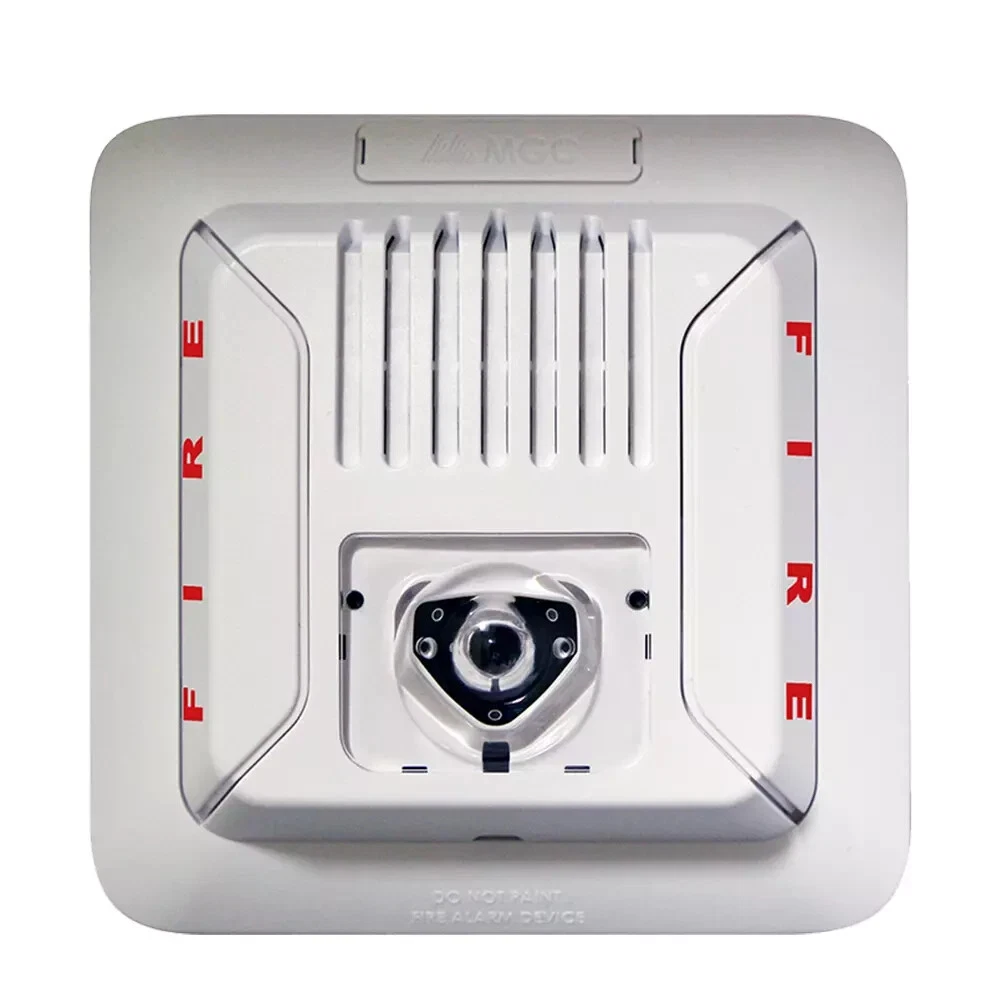

The Mircom FHS-400C-WW ceiling-mount horn/strobe represents a critical notification device for comprehensive fire alarm and emergency communication systems in commercial and institutional environments. Engineered for high-visibility alerting and audible signaling, this white-finished device provides essential life safety functionality across complex building infrastructures, from office complexes and educational facilities to healthcare campuses and industrial installations.
Designed for seamless integration with addressable and conventional fire alarm panels, the FHS-400C-WW delivers synchronized visual and audible emergency notifications. Its ceiling-mount configuration enables discreet installation while maintaining optimal coverage and compliance with stringent fire safety regulations. Fire alarm contractors and facilities managers can rely on this device to provide reliable, code-compliant emergency communication in critical momentary notification scenarios.
Key Features
- High-intensity xenon strobe with field-selectable candela ratings (15, 30, 75, 110 cd)
- Multi-tone horn capable of producing standard temporal code 3 and continuous tone patterns
- NFPA 72 and ADA compliant visual notification device
- UL Listed for fire protective signaling applications
- Low current draw optimized for efficient panel integration
- White powder-coated finish suitable for standard drop ceiling and exposed ceiling installations
Specifications
- Operating Voltage: 24 VDC nominal
- Current Draw: 90mA @ 24VDC (strobe), 15-40mA @ 24VDC (horn)
- Sound Output: Up to 85 dBA at 10 feet
- Mounting: Standard 4″ electrical box or pendant mount
- Temperature Range: 32°F to 120°F (0°C to 49°C)
- Listing: UL 464, UL 1971
Typical installation environments include commercial office buildings, educational institutions, healthcare facilities, manufacturing plants, and any commercial space requiring comprehensive emergency notification systems. Compatible with most major fire alarm control panels and designed for seamless integration with addressable and conventional notification appliance circuits.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 4.8 × 2 × 4.8 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Horn / Strobe |
