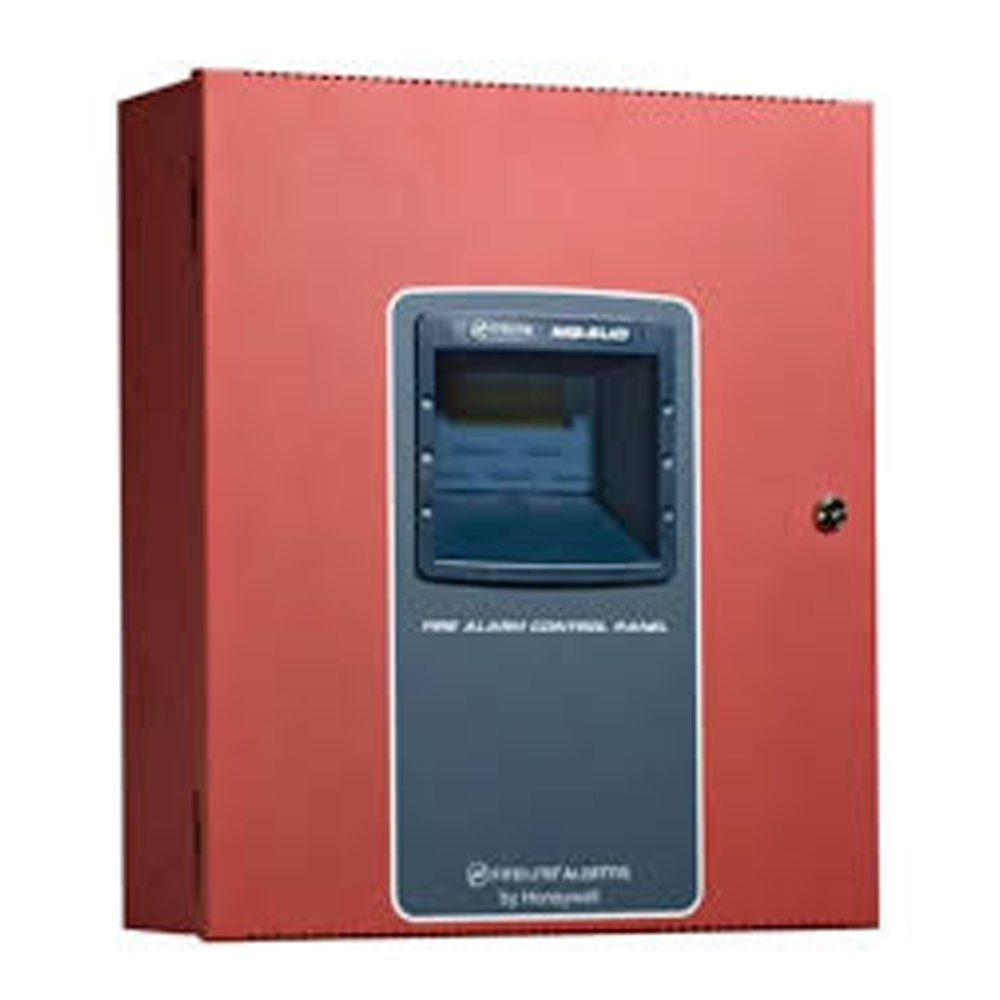

The Fire-Lite MS-5UD-3 is a robust 5-zone conventional fire control panel designed for comprehensive fire detection and alarm management in commercial and institutional environments. Engineered for reliability and seamless integration, this control panel provides critical life safety infrastructure for facilities ranging from small office complexes to mid-sized educational and healthcare facilities.
Utilizing advanced conventional detection technology, the MS-5UD-3 offers precise zone monitoring and notification capabilities with a built-in 3-amp power supply. Its versatile design supports multiple circuit configurations and provides essential emergency communication infrastructure that meets stringent fire protection standards, including NFPA 72, UL 464, and UL 864 requirements.
Key Features
- Five fully supervised conventional notification zones with individual circuit monitoring
- Integrated 3-amp power supply with battery charging capabilities for uninterrupted emergency operations
- Compatible with photoelectric and ionization smoke detectors, heat detectors, and manual pull stations
- LED status indicators for comprehensive system diagnostics and zone identification
- Supports local and remote alarm notification through NAC (Notification Appliance Circuits)
- Compact, surface-mountable enclosure designed for streamlined installation in electrical and security rooms
Specifications
- Input Voltage: 120VAC primary, 24VDC backup
- Power Supply: 3.0 amp, regulated and power-limited
- Battery Capacity: Compatible with 7-24 Ah sealed lead-acid batteries
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Dimensions: 14″ H x 12.5″ W x 4″ D
- Weight: Approximately 15 lbs
Ideal for commercial installations including office buildings, educational facilities, healthcare environments, and light industrial settings, the Fire-Lite MS-5UD-3 provides comprehensive fire alarm management with reliable performance and straightforward system integration.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 25.5 lbs |
|---|---|
| Dimensions | 23 × 21 × 7 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Photoelectric Smoke Detector |
