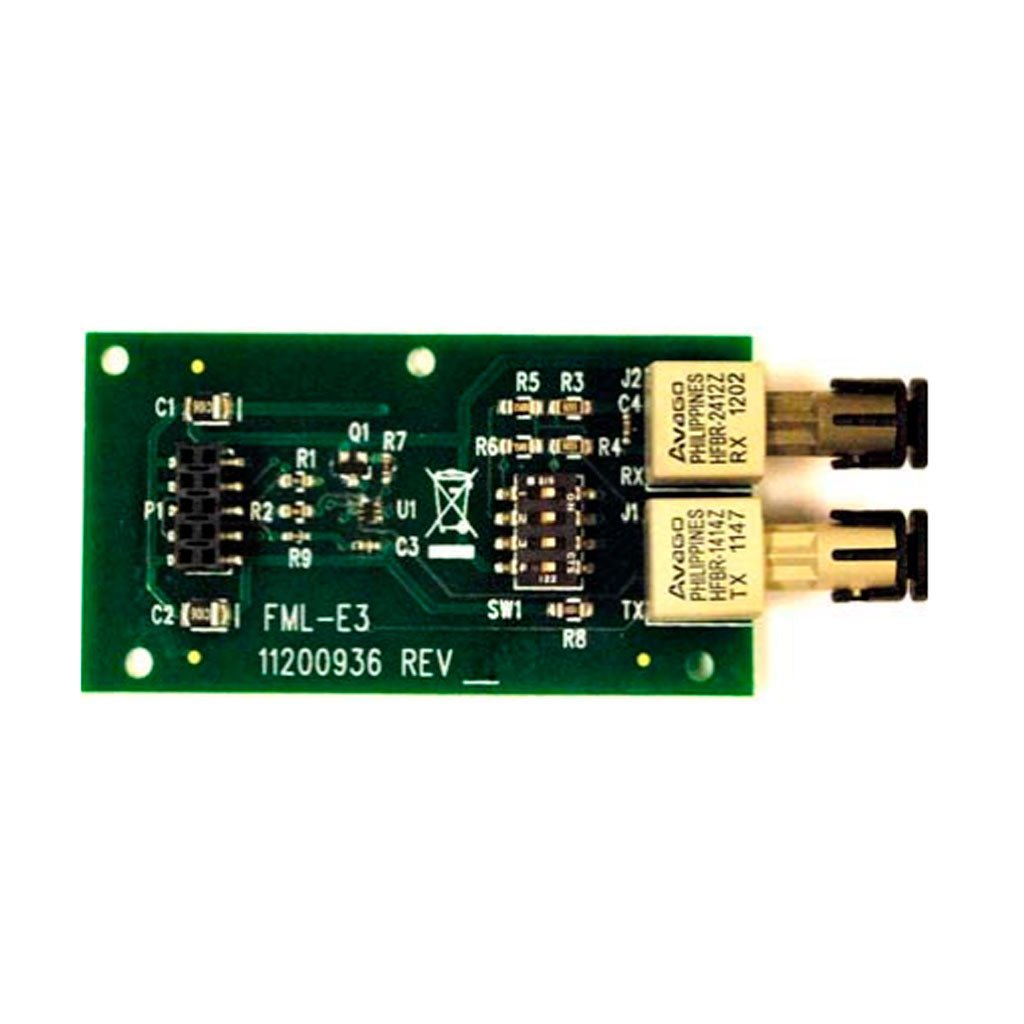

The Gamewell FML-E3 is the multi-mode fiber loop module for the E3 Series ARCNET network. First, the module plugs into the RPT-E3-UTP Network Repeater or an INI-VG Series voice gateway. Then it transmits or receives one ARCNET channel over fiber between panel nodes.
How the Gamewell FML-E3 fits the network
The FML-E3 is a single-channel module. Specifically, up to two FML-E3 modules install into each RPT-E3-UTP or INI-VG host. As a result, one host can carry up to two fiber channels into the E3 Series ARCNET ring.
In addition, a single-mode counterpart, the FSL-E3, covers long-distance runs that multi-mode fiber cannot reach. Therefore, integrators choose between FML-E3 (multi-mode) and FSL-E3 (single-mode) based on the fiber plant already in place.
Fiber Specifications
- Manufacturer: Gamewell-FCI (Honeywell)
- Part number: FML-E3
- Module type: plug-in fiber loop module, multi-mode, single channel
- Host modules: RPT-E3-UTP Network Repeater or INI-VG Series voice gateway
- Channels per host: up to 2 FML-E3 modules per RPT-E3-UTP or INI-VG
- Connector style: ST
- Maximum attenuation: 8 dB with 62.5/125 µm multi-mode fiber
- Network: E3 Series ARCNET communication circuit
- Related part: FSL-E3 (single-mode fiber loop module)
Order the Gamewell FML-E3 from Life Safety Consultants
Specify the FML-E3 for multi-mode fiber runs between E3 Series panel nodes. For single-mode plant, order the FSL-E3 instead. Life Safety Consultants stocks both alongside the RPT-E3-UTP network repeater.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.13 lbs |
|---|---|
| Dimensions | 2 × 8 × 4 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Power Supply |
