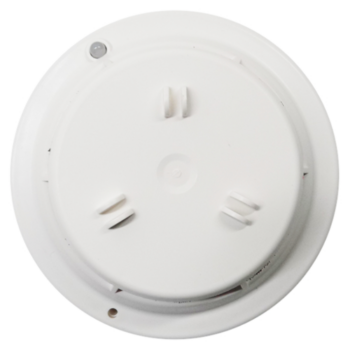

The Siemens FS-DP Photoelectric Smoke Detector is a precision-engineered detection device specifically designed for the FS-100 fire alarm panel system, delivering advanced smoke sensing capabilities for mission-critical commercial and industrial environments. Engineered for reliable early fire detection, this addressable smoke detector provides comprehensive coverage and rapid response in complex building infrastructures, from multi-story office complexes to manufacturing facilities and healthcare campuses.
Utilizing advanced photoelectric sensing technology, the FS-DP detector efficiently identifies visible smoke particles through a sophisticated optical chamber, minimizing nuisance alarms while maintaining exceptional sensitivity. Its intelligent design integrates seamlessly with Siemens addressable fire alarm networks, enabling precise location identification and comprehensive system monitoring for facility safety managers and fire protection professionals.
Designed for professional installation in commercial and institutional settings, the FS-DP smoke detector supports comprehensive fire detection strategies across diverse environmental conditions. Its robust construction and advanced sensing algorithms make it an ideal solution for challenging spaces requiring dependable smoke detection, including electrical rooms, data centers, storage areas, and mechanical spaces.
Key Features
- Addressable photoelectric smoke detection compatible with Siemens FS-100 fire alarm panels
- Advanced optical sensing chamber with low-profile design minimizing aesthetic interference
- Built-in LED indicator for visual alarm and maintenance status reporting
- Wide-ranging sensitivity adjustments to mitigate false alarm potential
- UL 268 and NFPA 72 compliant for commercial fire detection applications
- Direct mounting compatibility with standard 4-inch electrical boxes and mounting plates
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: Less than 200 µA
- Alarm Current: Less than 6 mA
- Temperature Range: 32°F to 120°F (0°C to 49°C)
- Humidity Tolerance: 10% to 93% non-condensing
- Mounting Base: Standard 4-inch electrical box compatible
Recommended installation environments include commercial office buildings, healthcare facilities, educational institutions, manufacturing plants, and data centers requiring comprehensive fire detection solutions. Certified professionals should always verify local building codes and specific installation requirements when integrating this detector into existing fire alarm systems.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 2 × 4 × 4 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Smoke Detector |
