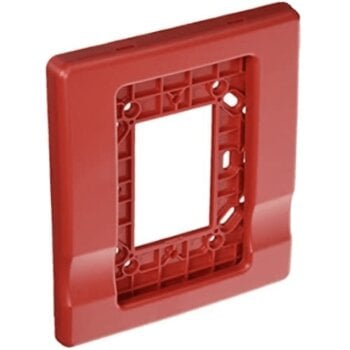

Edwards G1TR Genesis Trim Plate — Red
The Edwards G1TR is a red-finish Genesis Series trim plate. First, the plate covers oversized electrical-box openings behind a red Genesis appliance. As a result, the installer gets a clean finished surface around an undersized 1-gang appliance in an oversized opening.
In addition, the trim plate is purely mechanical. Therefore, it carries no standalone UL listing or electrical specification.
Verified application
- Covers two-gang, four-inch square, four-inch octagonal, or European 100 mm square electrical-box openings
- Not required for standard 1-gang installs — the appliance mounts directly to a 1-gang box
- Compatible with the red Genesis Series: G1R, G1RF horn / strobe / horn-strobe / chime / chime-strobe
- Material: textured engineered plastic, red finish
- Dimensions: 5″ (127 mm) x 5-7/8″ (149 mm) x 1/2″ (13 mm) deep
- Ship weight: 0.15 lb (0.07 kg)
Choosing the right Genesis trim plate
First, confirm the appliance finish — red or white. Then, select the trim plate to match. Furthermore, choose a FIRE-marked plate when the appliance carries the FIRE label.
Sources
Specifications drawn from Edwards data sheet 85001-0573 Issue 9 and K85001-0574 Issue 1.
For more information, contact the Life Safety Consultants team at 1-888-557-0558, or email us at: sales@lifesafetycom.com.
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6 × 6 × 1 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Strobe |
