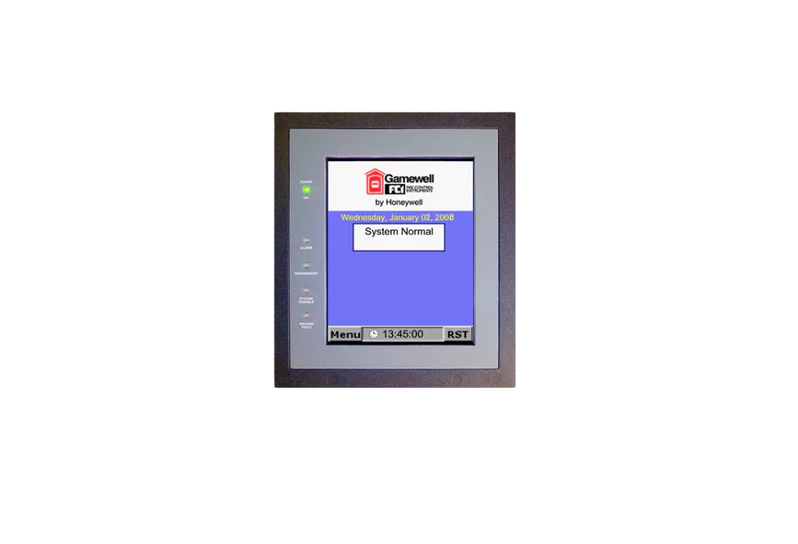

The Gamewell NGA Network Graphic Annunciator is a touchscreen display that mounts inside an E3 Series annunciator cabinet. First, the NGA reads the system event log and the status of every analog addressable monitor and control point. Then it presents that information on a back-lit VGA touchscreen. As a result, building staff get a clear, graphical view of the fire alarm network without leaving their station.
What the NGA Shows
- Real-time events from the system event log
- Status of every analog addressable monitor and control point on the SLC
- Diagnostic fault codes and messages
- Up to 512 user-defined messages, each up to 77 characters long
- Selectable font and color for each message
Verified Technical Specifications
- Display: Video Graphics Array (VGA) touchscreen, back-lit LCD
- Operating voltage: 24 VDC from the PM-9 or PM-9G power supply
- Current consumption: 0.2 A
- Operating temperature: 0°C to 49°C
- Interface: RS-232 serial port
- Slot footprint: One standard slot in an E3 Series cabinet
How It Connects
The NGA connects directly to the INI-VGC or RPT-E3 — there is no separate ARCNET interface card required. Therefore, designs that route the NGA through an INI-VGX voice gateway or RPT-E3 repeater can integrate the annunciator without a separate network bus adapter.
Where It Goes
The NGA is at home in any E3 Series cabinet that has a slot for it: Cabinets AA, A1, B, C, or D. In addition, the dedicated A1 enclosure (E3BB-BAA1 black, E3BB-RAA1 red) is sized specifically for a single NGA at a remote annunciation point. Furthermore, the E3BB-NGA-FLUSH semi-flush A2 housing supports password-protected NGA installations.
System Compatibility
- E3 Series Expandable Emergency Evacuation System
- E3 Series Combined Fire and Mass Notification System
- E3 Series Broadband Voice Evacuation System
Order the Gamewell NGA from Life Safety Consultants
Specify the NGA when the design calls for graphical, networked annunciation of E3 Series events from a remote display location. Life Safety Consultants stocks the NGA alongside the A1, A2, and AA cabinets it mounts in, plus the PM-9/PM-9G power supplies it draws from.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 9.5 × 9.5 × 4 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Monitor Module |
