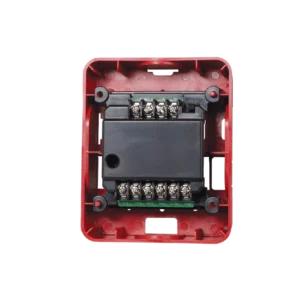

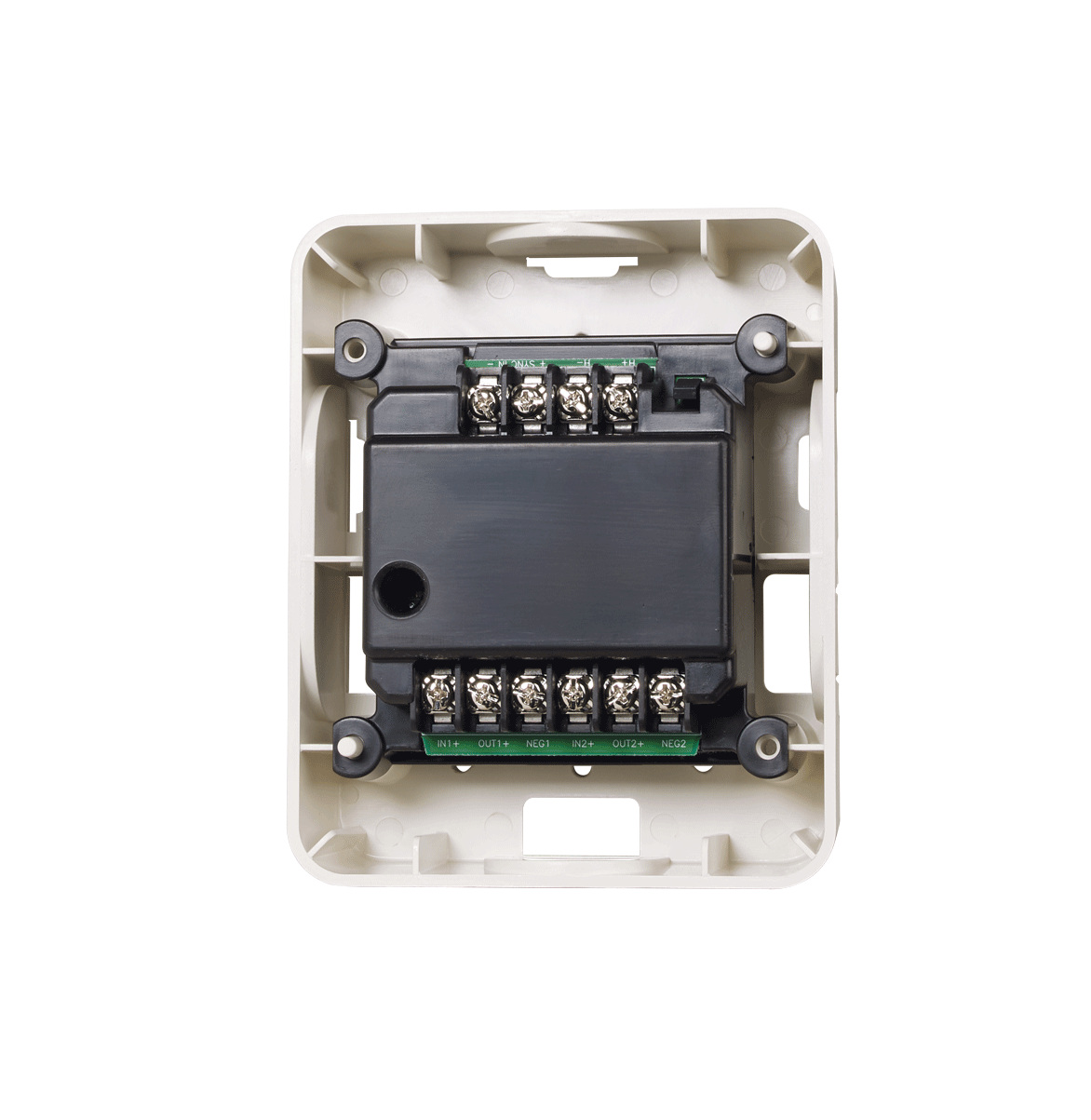

The GENTEX (AVSM-W) Gangable Synchronization Module represents a critical component for complex commercial fire alarm notification systems, engineered to provide seamless integration and synchronized visual/audio signaling across large-scale facilities. Designed for professional installers and fire protection engineers, this advanced module enables precise coordination of notification appliances in Class A and Class B circuit configurations, ensuring comprehensive emergency communication strategies.
Engineered for maximum compatibility with modern addressable fire alarm panels, the AVSM-W facilitates sophisticated multi-zone synchronization in challenging commercial environments such as hospitals, educational campuses, high-rise offices, and industrial complexes. Its gangable architecture allows for modular expansion and flexible mounting configurations, enabling installers to customize notification sequences with exceptional precision.
Key Features
- Supports both Class A and Class B synchronization circuit configurations for comprehensive fire alarm system design
- Compatible with GENTEX notification appliances and most major fire alarm control panel manufacturers
- Compact, DIN rail mountable form factor for streamlined panel integration
- Field-programmable synchronization settings with digital communication protocol
- UL 864 listed for critical life safety applications
- Meets NFPA 72 2019 edition notification appliance circuit requirements
Specifications
- Operating Voltage Range: 24V DC nominal
- Maximum Standby Current: 50 μA
- Maximum Alarm Current: 10 mA per synchronized circuit
- Temperature Rating: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 93% non-condensing
- Dimensions: 2.5″ x 1.75″ x 1″ (63.5mm x 44.5mm x 25.4mm)
Typical installation scenarios include addressable fire alarm systems in commercial office buildings, healthcare facilities, educational institutions, and industrial complexes where precise, synchronized emergency notification is critical for occupant safety and evacuation protocols.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 6 × 4.75 × 2.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Module |
