The Honeywell HON-DACT-DS is the DS Dialer for Notifier addressable fire alarm panels. Specifically, it provides dual telephone line communication from a fire alarm control panel (FACP) to a central monitoring station. As a result, the panel reports alarms, troubles, and supervisory events over the public switched telephone network.
Verified Specifications
- Function: Digital alarm communicator transmitter (DACT) for FACPs
- Communication: Dual POTS telephone lines (primary and secondary)
- Operating voltage: 18 to 30 VDC
- Dimensions: 10″ H x 2.75″ W x 8″ L
- Enclosure: red, external to the fire panel
- Protocol: Ademco Contact ID
- Dial tone detection: 350 Hz and 440 Hz (typical PSTN)
- Line interface: modular jacks (RJ-style)
- AC loss reporting delay: 2 hours (per UL 864)
- Listing: ETL Control 5025335, conforms to UL 864
- FCC ID: 1W6AL02ACGWMB
- Compliance: NFPA 70, NFPA 72
Compatible Panels

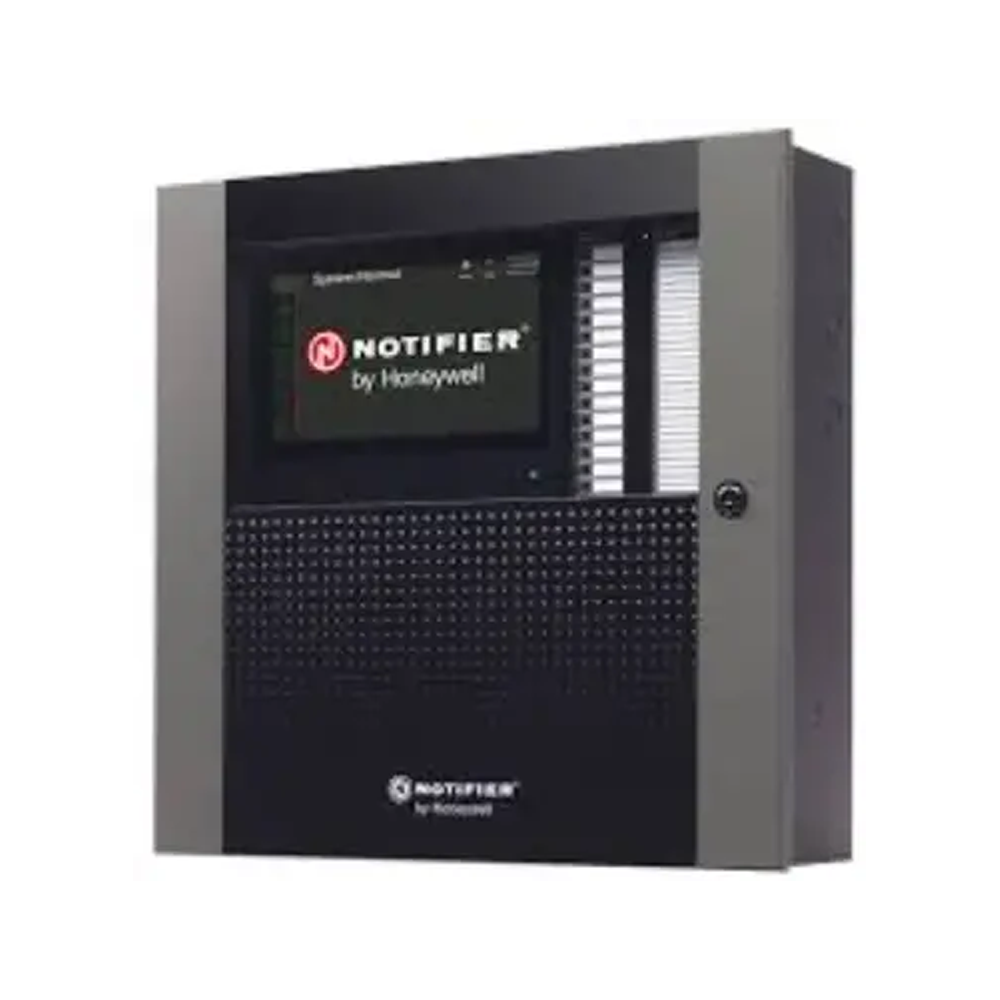

The DS Dialer supports a specific list of Honeywell-family panels. These include the Notifier Onyx series (NFS-320, NFS-640, NFS2-640, NFS-3030, NFS2-3030), the Notifier Inspire series (N16E, N16X), and the Gamewell-FCI E3/S3 series (ILI-MB-E3, ILI95-MB-E3, SLP-E3). Therefore, confirm the host panel model before ordering.
Compatible Central Station Receivers
The HON-DACT-DS works with the major central station receiver platforms. Specifically, supported receivers include Ademco 685, Ademco MX8000, Silent Knight 9500 and 9800, Honeywell FBI CP220FB, Osborne Hoffman 2000E, Radionics 6600, and SurGard MLR2, System III, and MLR-2000. As a result, the installer matches the dialer to the monitoring company’s receiver fleet.
Reporting Capabilities
The dialer reports a comprehensive event set. These include independent zone or point alarm, trouble, and supervisory events. Also reported are security panel off-normal, NAC trouble, and AC main power loss. Furthermore, the system generates Central Station reports through CLSS Site Manager for inspection record-keeping.
Visual diagnostics include LED indicators for Lost Panel Connection, Central Station Handshake Signal, and Communication Failure. Therefore, a technician can identify the failure mode at the dialer enclosure without a laptop.
Important Note on Phone Service
The DS Dialer requires two POTS (plain old telephone service) lines. Specifically, both lines must support analog dialing and dial tone detection. As a result, sites moving to all-IP phone service may require an alternative communication path — for example, a Honeywell CLSS Gateway with cellular module or a dedicated IP communicator.
Order or Get Application Help
Life Safety Consultants has stocked Notifier communicators since 2002. To order the Honeywell HON-DACT-DS or check compatibility with your panel and monitoring station receiver, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 10 × 5 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Power Supply |
