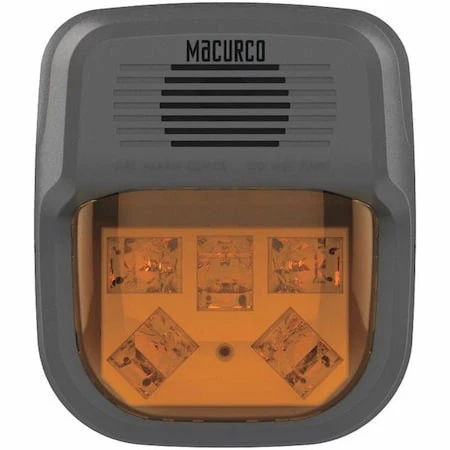

The Macurco HS-A is an amber horn strobe combination for gas detection systems. Specifically, it pairs with Macurco DVP-120 and DVP-120M control panels and Macurco 6-Series and 12-Series fixed gas detectors. Therefore, it provides remote audible and visual alarm at the protected area.
First, the HS-A runs on 24 VDC nominal power. Then, the user selects horn tone and strobe intensity via on-board settings. In addition, the appliance mounts to a standard double-gang box, either flush or surface.
Macurco HS-A audible and visual settings
The strobe is field-selectable at 15, 30, 75, or 110 candela. Also, the flash rate runs at 1 flash per second. Furthermore, the horn offers continuous and temporal-4 tone patterns for installer choice.
Verified specifications
- Nominal voltage: 24 VDC
- Operating voltage range: 16–33 VDC
- Strobe candela: selectable 15, 30, 75, or 110 cd
- Strobe flash rate: 1 flash per second
- Horn tones: continuous or temporal-4 patterns
- Lens color: amber
- Dimensions: 5.5″ × 4.75″ × 2″ (14 × 12 × 5 cm)
- Operating temperature: 32°F to 120°F (0°C to 49°C), 10–93% RH
- Mounting: flush or surface, double-gang back box
Compatibility
The HS-A is designed for use with the Macurco DVP-120 / DVP-120M panels. In addition, it works directly with Macurco 6-Series and 12-Series detector heads that provide a 24 VDC notification output. Therefore, this is the right horn strobe for a gas-detection notification circuit, not a UL 1971 fire-alarm strobe.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 5.5 × 4.8 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Horn / Strobe |
