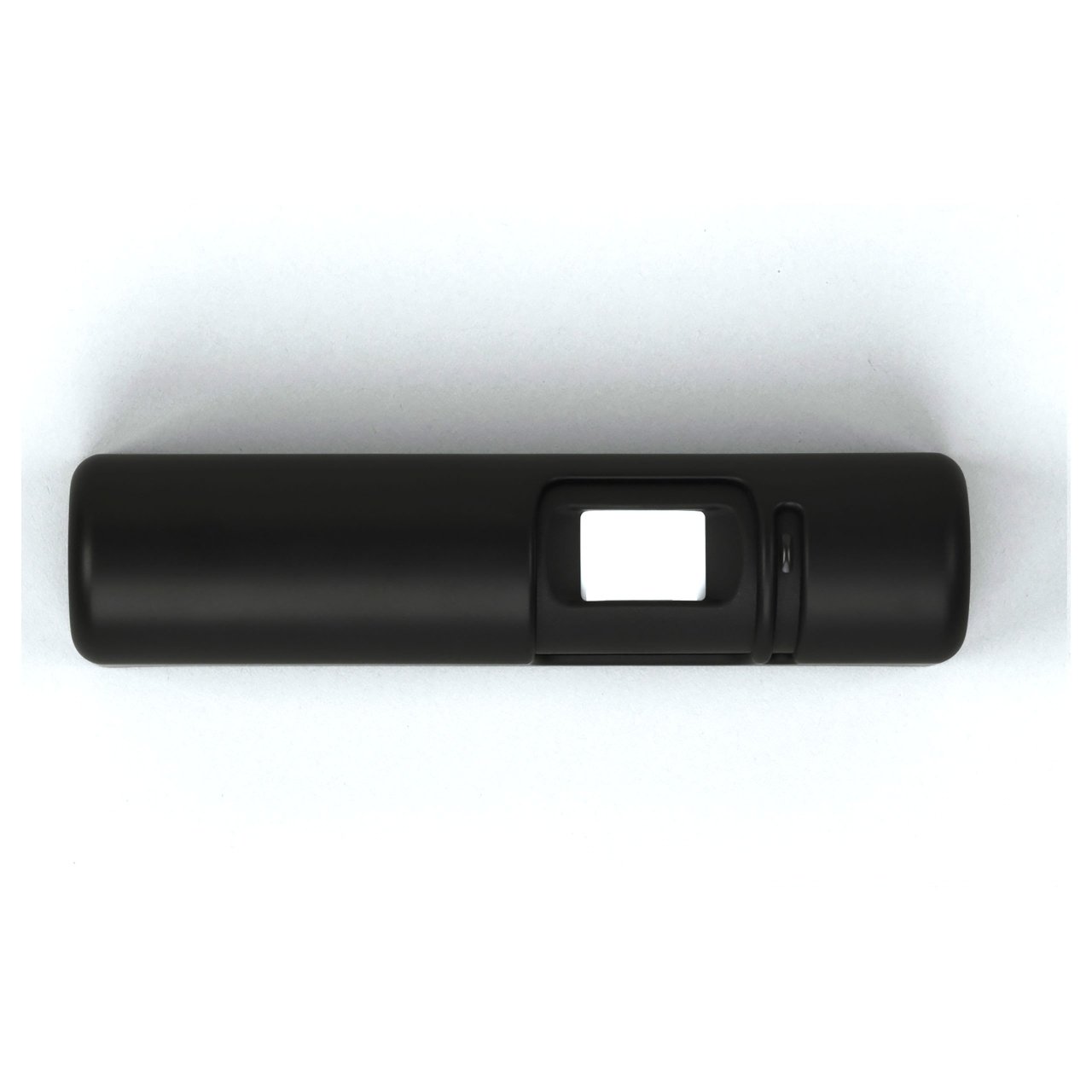

Resideo IS320BL Full-Featured Request-to-Exit Sensor (Black)
The Resideo IS320BL (part 0-000-361-04) is a request-to-exit (RTE) PIR sensor in black. First mount it above a door inside the access-controlled space. Then wire it to the access control panel’s REX input. As a result, the panel unlocks the door when someone approaches to leave.
The IS320BL is an access-control device. It is not a fire-alarm or intrusion-detection device.
Verified Specifications
- Technology: passive-infrared (PIR) motion sensing
- Application: request-to-exit (REX) for access control
- Model class: full-featured IntelliSense IS-320 series
- Piezo sounder: built-in, with volume control
- Inputs: door contact, reader/keypad/keyswitch, remote arming, remote sounder
- Tamper detection: built-in “tamper-proof” shutter
- Color: black (white version is IS320WH, part 0-000-361-03)
- Manufacturer part number: 0-000-361-04
Full-Featured vs. Entry-Level
The Resideo IS320BL keeps every feature of the IS310 entry-level REX. Then it adds the piezo sounder, door contact input, reader input, and remote signaling. As a result, one device handles REX, door supervision, audible feedback, and keypad pass-through.
However, if the install only needs a basic REX trigger, the IS310BL costs less. Also, the quick-install mount and generous wiring chamber speed retrofit work.
Order or Get Application Help
Since 2002, Life Safety Consultants has stocked Honeywell and Resideo IntelliSense REX sensors. To order the IS320BL or compare with the IS310 entry-level model, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 7.5 × 2 × 2 in |
| Condition | New |
| Manufacturers | Resideo |
| Part Type | Replacement Part |
