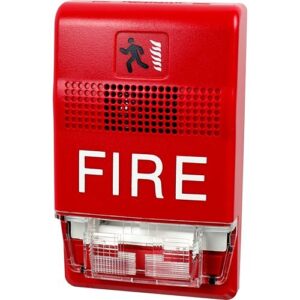

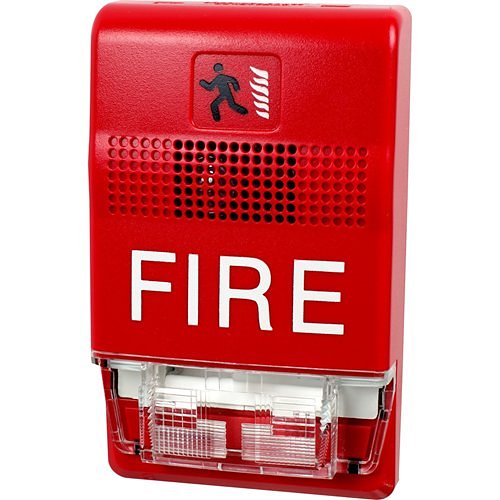

The Kidde EG1RF-CVM is a red, wall-mount Genesis G1 chime-strobe for fire alarm notification. The unit pairs a low-profile chime with a synchronizable strobe.
First, the chime sounds an audible signal when the panel activates the NAC. Then, the strobe flashes at the field-selected candela rating. As a result, occupants receive coordinated audible and visual notification. Therefore, the EG1RF-CVM is well suited for occupancies that prefer a chime-style audible to a horn.
Key Features
- Wall-mount Genesis G1 chime with synchronized strobe
- Field-selectable candela: 15, 30, 75, and 95 cd
- Red housing, marked “FIRE”
- 24VDC nominal operation (NAC-driven)
- Low-profile design — projects approximately one inch from the wall
Application Notes
Always confirm the panel’s NAC voltage and current capacity before specifying. Also, choose the candela setting based on the room’s coverage and ceiling height. However, Genesis appliances require Genesis sync — do not mix sync protocols on the same NAC.
Order or Get Application Help
Since 2002, Life Safety Consultants has stocked Kidde / Edwards Genesis notification appliances. To order the EG1RF-CVM or confirm sync compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 2.2 × 5.1 × 3.3 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Horn / Strobe |
