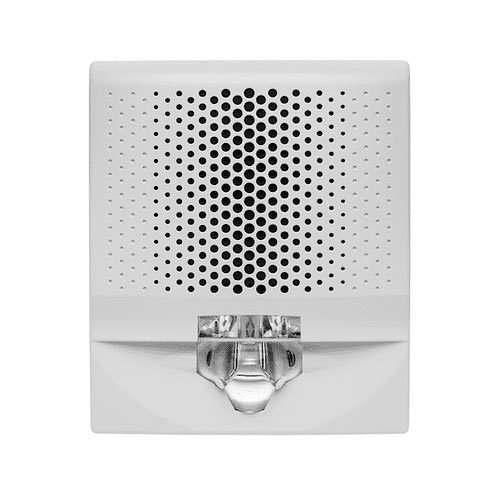

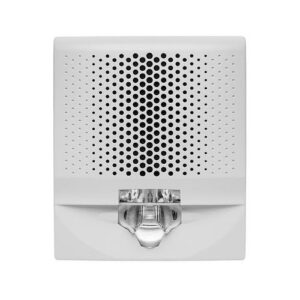

The Kidde EG4AVWF is a Genesis LED EG4 Series wall-mount horn-strobe in white with FIRE marking. Specifically, it is the room-side wiring plate (RSWP) version of the EG4 horn-strobe. As a result, the field installer wires once at the room side and snaps the device on in seconds.
First, the EG4AVWF uses high-efficiency LED strobe technology rather than a xenon tube. Then, the candela setting is field-selectable at 15, 30, 75, or 110 cd. Therefore, one part number replaces four candela-specific SKUs in the inventory.
In addition, the candela switch sits on the front face under the cover. Furthermore, the chosen setting stays visible through a window once the cover is closed. As a result, an inspector can verify the candela setting without removing the device.
Key Features of the Kidde EG4AVWF Wall-Mount Horn-Strobe
- White housing with FIRE marking
- Field-selectable 15 / 30 / 75 / 110 cd candela output
- High-efficiency LED strobe — lower current draw than xenon strobes
- Horn audible output with constant or T3 (temporal-3) pattern
- Low/high dBA horn output setting
- Room-side wiring plate (RSWP) included for fast install
- Mounts on a standard double-gang electrical box
- Synchronizable with the Genesis G4M or G4M-RM Signal Master
- UL 1971 listed (for the hearing impaired) and UL 464 listed
- ULC S526 and S525 listed
Specifications
- Operating voltage (horn-strobe): 16 to 33 VDC or 16 to 33 VFWR
- Operating current at 110 cd (typical): C-Low 40 mA, C-High 50 mA, T-Low 48 mA, T-High 60 mA
- Lower candela settings draw less current — see datasheet K85001-0668 for the full table
- Operating temperature: 32 to 122°F (0 to 50°C)
- Relative humidity: 0 to 93% noncondensing
- Storage temperature: -40 to 158°F (-40 to 70°C)
- Mounting: double-gang electrical box at least 1-1/2 in deep
- Indoor wall mount only
- Documented in Kidde / Edwards data sheet K85001-0668 Issue 1.5
Companion Products
- EG4WSB — white 4-inch surface mount box for the EG4 series
- EG4RSB — red 4-inch surface mount box for the EG4 series
- G4M / G4M-RM — Genesis Signal Master for synchronization
- EG4AVWF-CVR — replacement white cover with FIRE marking
Order or Get Application Help
Life Safety Consultants stocks the Kidde EG4AVWF and the full Genesis EG4 Series of notification appliances. To order or scope an EG4 layout, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 6 × 6 × 4 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Horn / Strobe |
