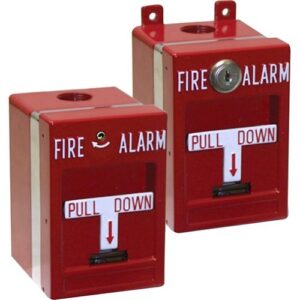

The Kidde MPSR1-S45W-GE is a weatherproof single-action manual pull station with SPST contacts. Specifically, it suits commercial fire alarm systems that require single-pole switching.
In addition, the die-cast housing carries pre-painted and plated corrosion-resistant finishes. As a result, it holds up in outdoor, dusty, and corrosive locations.
Kidde MPSR1-S45W-GE operation
First, a single downward pull of the handle latches the SPST contact. Then, the alarm circuit transmits the activation to the fire alarm control panel. Finally, an authorized technician resets the station with a Cat 45 lock key.
Furthermore, screw terminals accept field wiring directly. Therefore, installers can land conductors without splice connections.
Environmental ratings
The enclosure is rated NEMA 4X for outdoor use. Also, it carries hazardous-location listings for Class I Groups B, C, and D, Class II Groups E, F, and G, and Class III locations.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.3 lbs |
|---|---|
| Dimensions | 5.75 × 4.25 × 4.5 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Pull Station |
