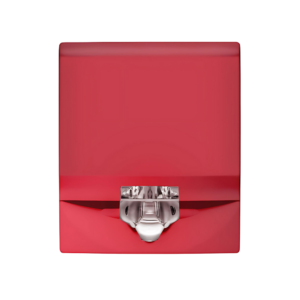

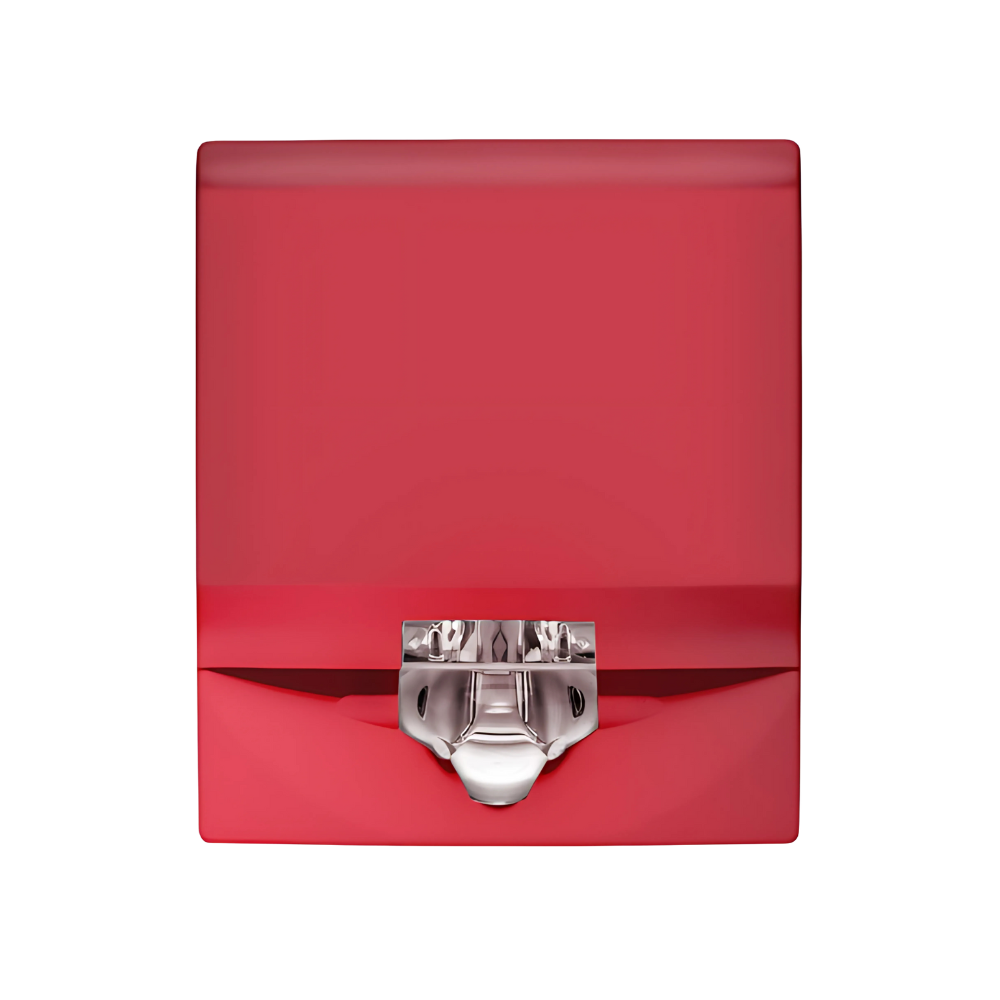

The KIDDE COMMERCIAL EG4VRF is a wall-mount Genesis LED EG4 Series strobe. Specifically, it ships with a red housing and the “FIRE” marking.
First, the EG4VRF mounts to the included GP10 (or GRSW-10) room-side wiring plate. Then, the appliance snaps into the plate, simplifying pre-install and pre-wire. Furthermore, a diagnostics check bar verifies electrical continuity before the cover goes on.
In addition, candela output is field-selectable at 15, 30, 75, or 110 cd. Therefore, one part number covers a range of room sizes by sliding the on-cover candela switch.
Key Features of the KIDDE COMMERCIAL EG4VRF Strobe
- Wall-mount Genesis LED EG4 Series strobe, red housing, FIRE marking
- Field-selectable 15, 30, 75, or 110 cd light output
- High-efficiency optics with patented LED electronics — far lower current than legacy Xenon
- Backwards compatible: EG4 LED strobes can mix on the same circuit and field of view as Xenon strobes
- UL 1971 listed for public-mode notification of the hearing impaired
- Synchronizes within UL’s 10 ms over two hours when driven by a compatible Kidde sync source
- Low-profile design protrudes only 1.5 in from the wall
- Quick-swap replaceable covers in red or white with FIRE/None/ALERT markings
- Universal room-side wiring plate (GP10/GRSW-10) included
- Diagnostics test points under the cover for verifying NAC voltage
Specifications
- Operating voltage: 16 to 33 VDC, 16 to 33 VFWR
- Light output: 15, 30, 75, or 110 cd (field selectable)
- Flash rate: approximately 1 fps
- Operating current (any cd setting, strobe only): 28 mA at 16-33 VDC; 36 mA at 16-33 VFWR
- Synchronization: 20 Ω max. between any two devices
- Wire size: 12 to 18 AWG (0.75 to 2.50 mm²)
- Dimensions (W × H × D): 4.95 × 5.78 × 1.62 in (12.57 × 14.68 × 4.11 cm)
- Strobe-to-box center offset: -1.70 in (-4.32 cm)
- Compatible electrical boxes: 1-gang, 2-gang, 3.5-inch octagon, 4-inch square (min. 1.5 in deep)
- Operating temperature: 32 to 122°F (0 to 50°C)
- Storage temperature: -40 to 158°F (-40 to 70°C)
- Relative humidity: 0 to 93% non-condensing
Approved Synchronization Sources
First, Kidde CC Series signal modules drive the EG4 sync protocol. Then, Kidde booster and auxiliary power supplies provide the same synchronized output. In addition, Kidde Intelligent and Conventional Control Panels are listed sync sources.
Mounting and Trim
The EG4 family fits 1-gang, 2-gang, 3.5-inch octagon, and 4-inch square boxes at least 1.5 in deep. Furthermore, optional EG4TR (red) and EG4TW (white) trim plates cover oversized openings. Also, EG4RSB (red) and EG4WSB (white) wall surface-mount boxes are available.
Order or Get Application Help
Life Safety Consultants stocks the full Genesis EG4 horn, strobe, and horn-strobe lineup. To order the KIDDE COMMERCIAL EG4VRF or to confirm candela coverage for your space, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 6 × 3.75 × 5.5 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Strobe |
