KIDDE COMMERCIAL (EGCSVHRF) Ceiling Speaker/Strobe, 135-185cd, Red,

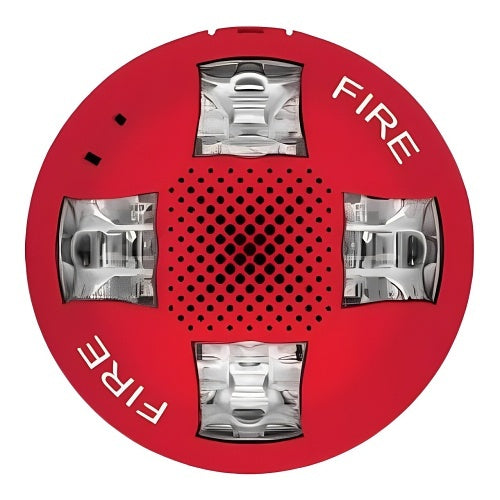

The KIDDE COMMERCIAL EGCSVHRF is a ceiling-mount Genesis LED EGCSVH high-candela speaker-strobe. Specifically, it ships with a red housing and the “FIRE” marking.

First, the strobe is field-selectable for 135, 150, 177, or 185 cd output. Then, the speaker portion is independently set for 25 VRMS or 70 VRMS audio. In addition, the wattage tap selects 1/4, 1/2, 1, or 2 W. As a result, one SKU covers a wide range of coverage and amplifier scenarios.

Furthermore, both settings stay visible through small windows after the cover snaps shut. Also, the EGCSVH family includes a DC blocking capacitor for supervised audio circuits.

Key Features of the KIDDE COMMERCIAL EGCSVHRF Ceiling Speaker-Strobe

• High-candela LED strobe: 135, 150, 177, or 185 cd (field selectable)
• Dual-voltage speaker: 25 VRMS or 70 VRMS via field switch
• Wattage taps: 1/4, 1/2, 1, or 2 W
• 520 Hz capable for NFPA-compliant sleeping-area notification
• Speech Transmission Index (STI) of 0.81 for clear voice messages
• Enhanced synchronization circuitry for UL 1638 and CAN/ULC-S526 compliance
• Low-profile ceiling design protrudes only 1.82 in (4.62 cm) below the ceiling
• Front-of-device test points for verifying NAC and speaker circuit wiring
• Backwards compatible with legacy Xenon strobes on the same circuit
• Listed for wall OR ceiling mount; indoor dry locations only

Sound Output (UL 1480 at 10 ft)

• 1/4 W: 78 dBA reverberant, 77 dBA anechoic
• 1/2 W: 81 dBA reverberant, 80 dBA anechoic
• 1 W: 84 dBA reverberant, 83 dBA anechoic
• 2 W: 87 dBA reverberant, 85 dBA anechoic
• Sound pattern (ULC): −3 dBA at 120°/60° horizontal and vertical; −6 dBA at 140°/40° horizontal

Specifications

• Operating voltage (strobe): 16 to 33 VDC, 16 to 33 VFWR
• Operating current (strobe, all candela settings): 53 mA at 16-33 VDC; 68 mA at 16-33 VFWR
• Operating voltage (speaker): 25 VRMS or 70 VRMS (field configurable)
• Speaker frequency response: 400 to 4,000 Hz
• Supervisory voltage: 30 V max.
• Strobe flash rate: ~1 fps
• Wire size: 12 to 18 AWG
• Dimensions: 6.80 in (17.27 cm) diameter × 1.82 in (4.62 cm) depth
• Compatible electrical boxes: 2-gang, 4-inch square, 4-inch octagon (with GOCT adapter plate)
• Wiring plate: GRSW (GRSW-10) — ordered separately
• Trim plates: GCTR (red), GCTW (white)
• Operating temperature: 32 to 122°F (0 to 50°C)
• Relative humidity: 0 to 93% noncondensing
• Environmental class: indoor, dry
• Documented in Kidde data sheet K85001-1051 / installation P/N 3102946-EN

Mounting and Wiring

First, attach the GRSW-10 wiring plate to the electrical box. Then, land the speaker IN/OUT and strobe IN/OUT field wiring on the terminals. In addition, remove the shorting clip before snapping the appliance into the plate. Furthermore, the device snaps off the plate by pressing the bottom spring clip.
