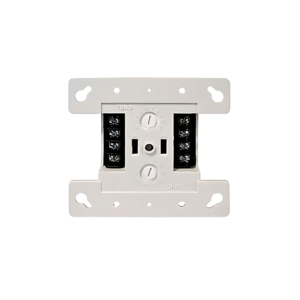

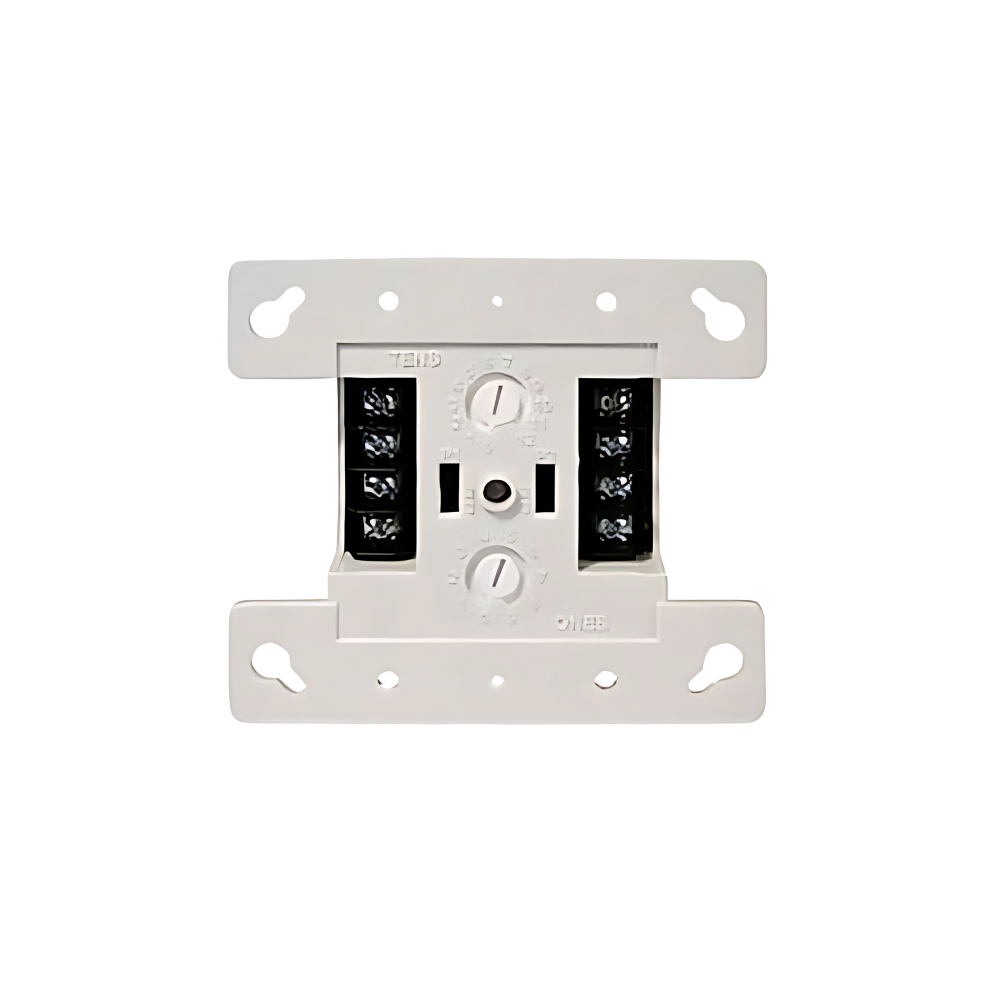

The KIDDE COMMERCIAL FX-SLC1 is a Single SLC Interface Card for the Kidde FX-series intelligent fire alarm control panels. Specifically, it installs in the FX-64 or FX-1000 panel.
First, the card provides 64 device addresses when installed in an FX-64 panel. Then, it provides 250 device addresses per loop when installed in an FX-1000 panel. Specifically, that 250 count splits into 125 detectors and 125 modules.
In addition, the FX-1000 supports up to three FX-SLC1 cards across two slots. As a result, FX-1000 panel capacity can grow in 250-point steps via this single-loop card.
Key Features of the KIDDE COMMERCIAL FX-SLC1 Single SLC Interface Card
- One signaling line circuit (SLC) per card
- FX-64: 64 device addresses (any mix of detectors and modules)
- FX-1000: 250 device addresses per loop (125 detectors + 125 modules)
- Class B, Class A, and Class X wiring options
- Two on-board status LEDs: DS1 device communication and DS3 loop fault
- Primary slot J15 = panel SLC1; secondary slot J7 = SLC2 (or SLC3 if a dual SLC card occupies J15)
- Up to 64 isolators per loop (bases plus modules)
- Field labels included to mark the correct SLC number on the panel
Specifications
- Wiring: Class B, Class A, or Class X
- Operating voltage: 24 VDC
- Operating current (fully loaded loop): standby 55 mA per loop; alarm 80 mA per loop (excludes two-wire smoke modules)
- Communication line voltage: 20.6 V peak-to-peak max.
- Circuit current: 0.5 A max.
- Maximum total loop resistance: 66 Ω
- Maximum total loop capacitance: 0.5 µF
- Ground fault impedance: 0 to 5 kΩ
- Terminal rating: 12 to 18 AWG (0.75 to 2.5 mm²)
- Operating temperature: 32 to 120°F (0 to 49°C)
- Relative humidity: 0 to 93% noncondensing at 90°F (32°C)
- Documented in installation sheet P/N 3102226-EN REV 002 ISS 26MAR17
Wiring Notes
First, the FX-SLC1 supports Class B, Class A, and Class X wiring. However, Class A and Class X both require isolator modules or isolator detector bases. Furthermore, NFPA 72 limits Class A loops to a maximum of 50 addressable devices between isolators. In addition, Class X requires unisolated devices to be mounted in a listed enclosure with isolators on the incoming and outgoing wiring.
Order or Get Application Help
Life Safety Consultants stocks the FX-SLC1 alongside the FX-64 and FX-1000 panels, dual-loop FX-SLC2 cards, and the full Kidde addressable device lineup. To order the KIDDE COMMERCIAL FX-SLC1 or plan an FX-1000 expansion, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 5.2 × 3.8 × 3 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Strobe |
