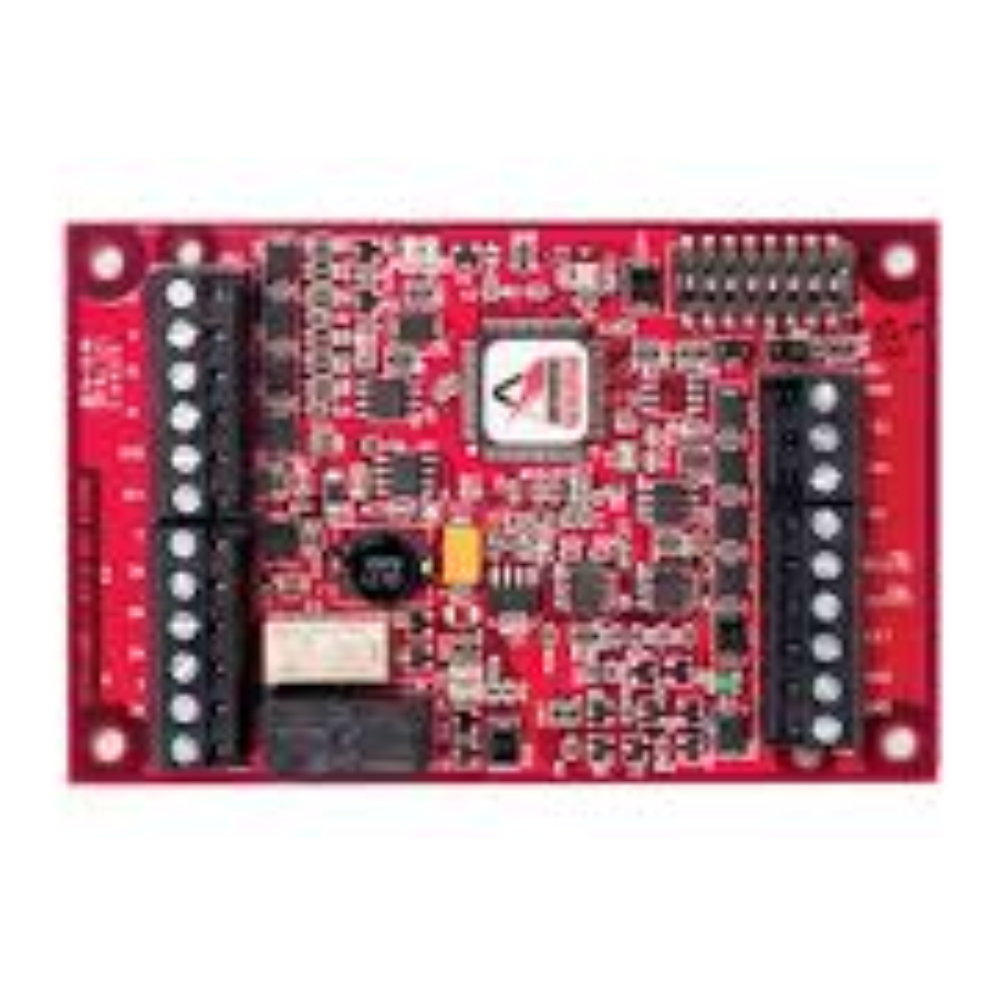

LENEL (LNL-1300-S3) Single Reader Interface Module

The Lenel (LNL-1300-S3) is a Series 3 single reader interface module for the LenelS2 OnGuard access control platform. Specifically, it connects one card reader and its door hardware to a LenelS2 intelligent controller. Therefore, it brings a single door under centralized OnGuard control.

First, the module communicates with the controller over a 2-wire RS-485 bus. In addition, that bus supports multi-drop wiring up to 4,000 feet (1,219 m). As a result, integrators can place the board at the door while the controller stays in a closet.

What the Lenel LNL-1300-S3 Controls

The board provides one reader port for standard credential devices. Furthermore, it includes two supervised inputs and two Form-C relay outputs. Therefore, one module can monitor a door contact and a request-to-exit device while driving a strike.

Key Features

• Series 3 single reader interface module for LenelS2 OnGuard
• Powered by 12 or 24 VDC
• One reader port for Wiegand (D1/D0), Clock/Data, F2F, or OSDP RS-485 readers
• Two inputs configurable as normally open, normally closed, supervised, or unsupervised
• Two Form-C relays rated 5 A for door strike and 1 A for auxiliary control
• 2-wire RS-485 multi-drop communication up to 4,000 ft (1,219 m)

Specifications

• Module type: single reader interface (Series 3)
• Input power: 12 or 24 VDC
• Reader ports: one (Wiegand, Clock/Data, F2F, OSDP RS-485)
• Inputs: two, supervised or unsupervised
• Relay outputs: two Form-C (5 A strike, 1 A aux)
• Controller communication: 2-wire RS-485, multi-drop up to 4,000 ft (1,219 m)

Order or Get Application Help

Life Safety Consultants stocks LenelS2 Series 3 reader interface boards for OnGuard systems. To order the Lenel (LNL-1300-S3) or to plan a door’s reader wiring, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
