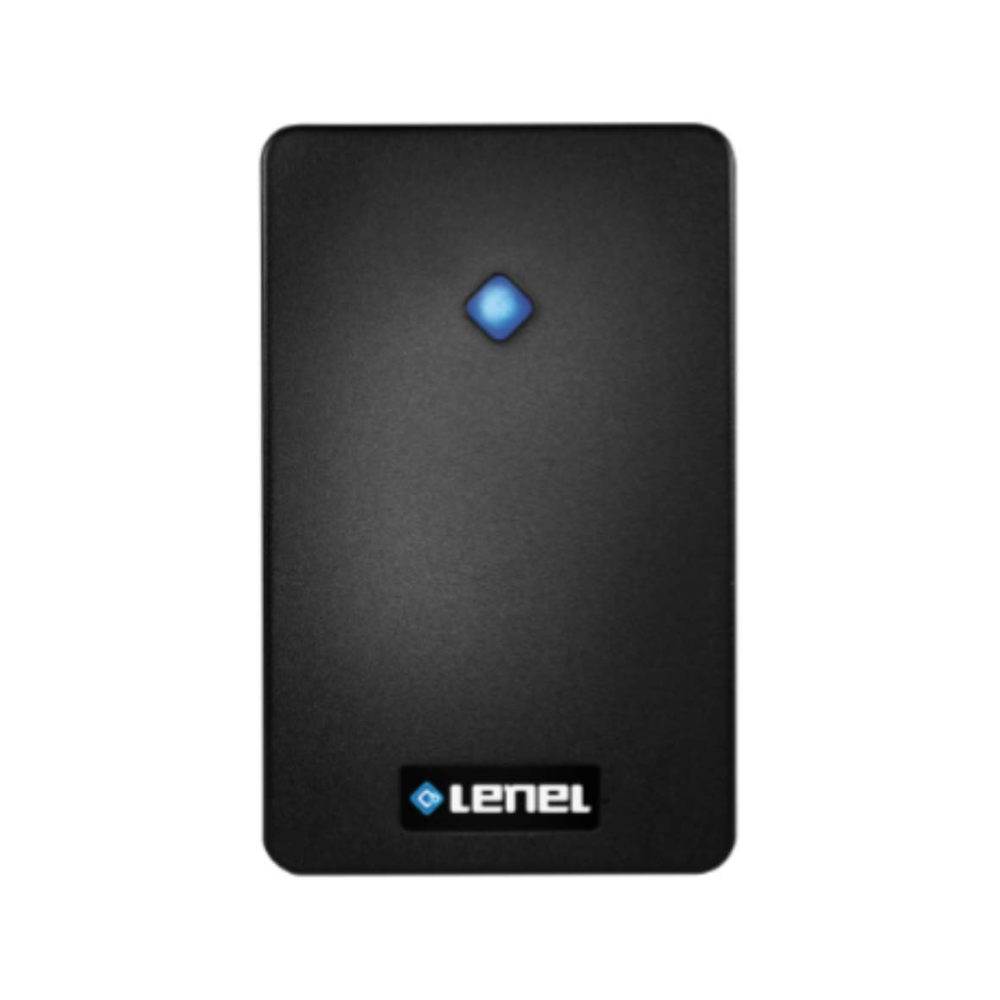

The Lenel LNL-R11320-05TB is a BlueDiamond Multi-Technology Standard-Size Reader for the LenelS2 access control platform. Specifically, it reads BlueDiamond mobile credentials over Bluetooth in addition to 125 kHz proximity and 13.56 MHz smart cards.
In addition, the LNL-R11320-05TB is non-proprietary. As a result, it operates with LenelS2 OnGuard, NetBox, and Elements head-end systems.
Lenel LNL-R11320-05TB credentials
First, the reader supports BlueDiamond mobile credentials at distances up to 30 ft (9 m). Then, it simultaneously reads HID iCLASS, MIFARE, DESFire EV1, and DESFire EV2 smart cards. Also, it supports 125 kHz prox cards alongside the smart-card and mobile modes.
Furthermore, the reader outputs Wiegand, OSDP, OSDPv2, or Supervised F/2F. Therefore, it integrates with legacy and modern access-control panels.
Physical and environmental
The housing measures 4.7 × 3.0 × 0.8 in (120 × 76 × 21 mm). In addition, it is molded polycarbonate/ABS with a black textured fingerprint-resistant finish. As a result, it mounts to a wall surface or to US, UK, and EU switch boxes.
Furthermore, the reader operates from -35 °C to 65 °C (-31 °F to 149 °F) at 0–100% RH non-condensing. Also, it carries an IP65 ingress protection rating.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5.5 × 3.5 × 1.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
