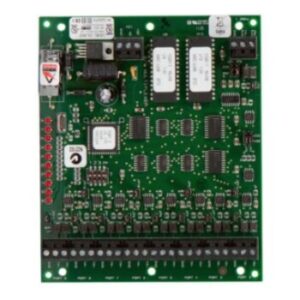

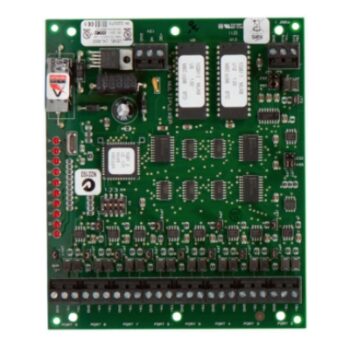

The Lenel LNL-8000 is a star multiplexer module for the LenelS2 OnGuard access control platform. Specifically, it expands one intelligent controller’s communication to many downstream boards. Therefore, a single controller can reach reader, input, and output modules across a large site.
First, the LNL-8000 runs on 12 VDC power. In addition, it provides eight downstream RS-485 2-wire ports. Alternatively, those ports configure as four RS-485 4-wire ports. As a result, integrators choose the wiring scheme that fits the installation.
How the Lenel LNL-8000 Expands a System
Each downstream port carries a multi-drop RS-485 bus. Furthermore, the star topology isolates branches from one another. Therefore, a wiring fault on one branch does not take down the others. As a result, large facilities gain both reach and reliability.
Key Features
- Star multiplexer module for LenelS2 OnGuard intelligent controllers
- Powered by 12 VDC
- Eight downstream RS-485 2-wire ports, or four RS-485 4-wire ports
- Star topology isolates downstream branches for fault tolerance
- Works with LenelS2 reader, input, and output modules
- Multi-drop RS-485 buses for remote board placement
Order or Get Application Help
Life Safety Consultants stocks LenelS2 multiplexer and controller boards for OnGuard expansions. To order the Lenel LNL-8000 or to plan downstream port wiring, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6 × 6 × 1 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Control Module |
