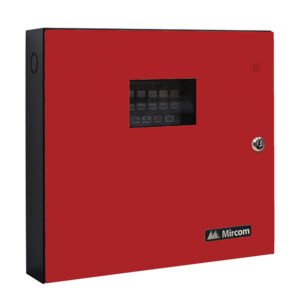

The Mircom FA-106R is a supervised six-zone conventional fire alarm control panel. Specifically, it operates on 24 VDC for small commercial, institutional, and industrial buildings. As a result, it delivers reliable zone-based fire detection at a practical scale.
Mircom FA-106R features
First, the panel provides six Class B input circuits for detection zones. In addition, it offers two Class B notification output circuits. Together those outputs supply 2.0 amps, with up to 1.25 amps per circuit. Also, selectable Steady and Temporal tones configure easily through DIP switches.
Supervision and indication
Furthermore, the FA-106R supervises wiring faults, ground faults, low battery, open wiring, and AC loss. Then front-panel LEDs report zone alarm, zone trouble, AC status, battery fault, ground fault, and common trouble. Finally, the panel ships with a red door and a black backbox.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 13.7 × 12.7 × 2.8 in |
| Condition | New |
| Manufacturers | Mircom |
| Specification | 6-zone conventional (non-addressable) FACP, supervised zone circuits, trouble and supervisory signaling |
