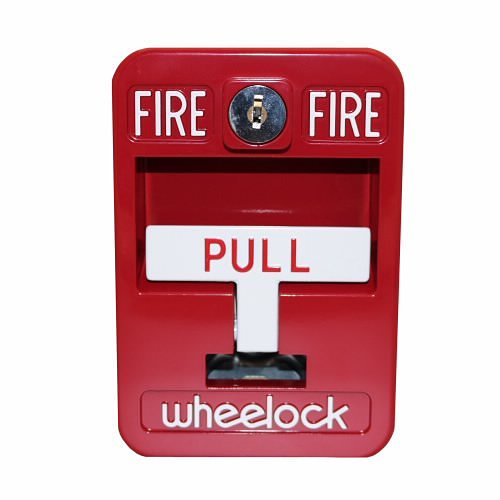

The Wheelock MPS-100 manual pull station initiates a fire alarm with a single pull. It uses SPST contacts and a terminal strip for wiring. Specifically, the operator pulls the handle fully down, where it locks in place. As a result, the activated handle stays visible from up to 50 feet.
Wheelock MPS-100 manual pull station reset and build
This station resets only with a key, which deters casual tampering. First, open the station with the key. Then return the handle upright and relock the cover. Furthermore, the red die-cast metal housing holds up in demanding settings.
Ratings and listings
The MPS-100 measures 4.75 by 3.25 by 1.1 inches. Its contacts are rated 30 VDC at 1 A and 120 VDC at 1 A. In addition, it works indoors and outdoors from minus 40 to 150 degrees Fahrenheit. Finally, it carries UL, FM, CSFM, and MEA listings.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 5.3 × 3.6 × 2.8 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Pull Station |
