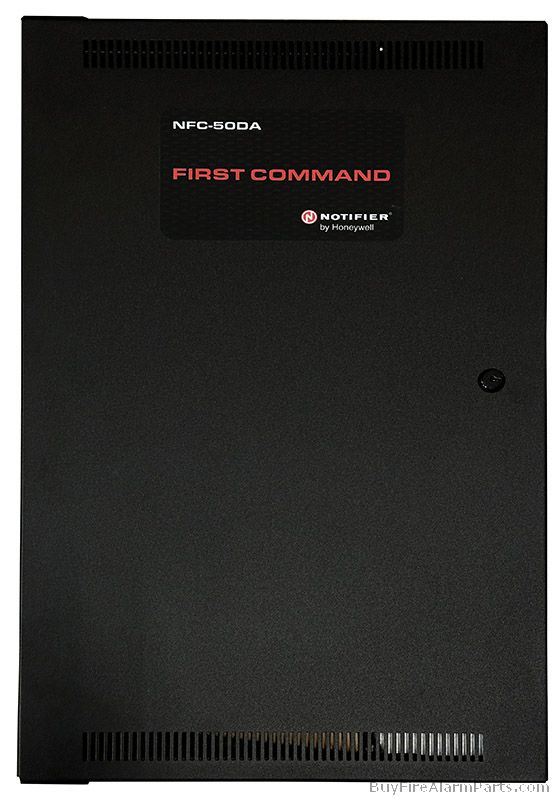

The Notifier NFC-50DA is a 50-watt distributed audio amplifier for FirstCommand voice-evacuation systems. Specifically, it works with the NFC-50/100(E) Emergency Command Center. As a result, designers can place audio power near the protected area. Therefore, riser wiring drops and voltage drop stays inside spec.
This amplifier ships with four built-in, fully supervised speaker circuits as standard. In addition, the optional NFC-CE4 module expands the unit to eight speaker circuits. Furthermore, the NFC-50DA is field-selectable for 25 Vrms or 70.7 Vrms output. As a result, it matches most existing speaker risers.
Notifier NFC-50DA features
- First, 50 watts total amplifier output power
- Also, 4 supervised Class A or Class B speaker circuits standard
- In addition, expandable to 8 circuits with the optional NFC-CE4 module
- Furthermore, field-selectable 25 Vrms or 70.7 Vrms operation
- Frequency response: 400 Hz to 4,000 Hz (voice band)
- Designed for the NFC-50/100(E) FirstCommand console
- Self-contained cabinet for remote placement near the protected area
- Black enclosure
Specifications
- Output power: 50 watts
- Output voltage: 25 Vrms or 70.7 Vrms, field-selectable
- Speaker circuits: 4 supervised standard (8 with NFC-CE4)
- Primary input: 120 VAC, 60 Hz (NFC-50DA); 220-240 VAC, 50/60 Hz on the NFC-50DAE export variant
- Operating range: 32°F to 120°F (0°C to 49°C)
- Humidity: 93% RH non-condensing
- Per Notifier DN-60776 (NFC-50DA / NFC-50DAE / NFC-50/100DA / NFC-125DA / NFC-125DAE)
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 29.5 × 19 × 5.5 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Speaker |
