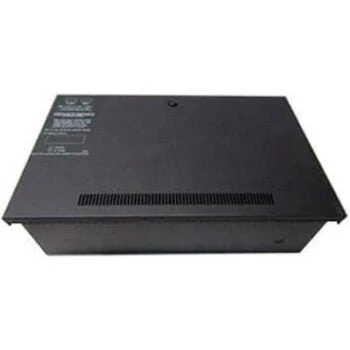

The Notifier NFS-LBB is a large battery box enclosure cabinet for Notifier NFS-series fire alarm control panels. It houses backup batteries that exceed the space available inside the FACP itself.
First, the NFS-LBB holds up to two BAT-12550 (55 AH) batteries. Alternatively, it accepts a single BAT-121000 (100 AH) battery. In addition, smaller 26 AH batteries fit when a charger board occupies part of the cabinet.
The cabinet is finished in black with a lockable door. As a result, batteries are physically protected and access is restricted to service personnel.
Notifier NFS-LBB Specifications
- Box dimensions: 24.0″ W × 14.0″ H × 7.75″ D
- Door dimensions: 24.125″ W × 14.25″ H
- Color: Black
- Battery capacity: two 55 AH, one 100 AH, or 26 AH options (depending on charger board)
- Compatible batteries: BAT-12260 (26 AH), BAT-12550 (55 AH), BAT-121000 (100 AH)
When to Order the NFS-LBB
Order the NFS-LBB when your standby load calculations require larger battery capacity than the host NFS panel can fit. For example, large addressable systems or long secondary-power durations frequently exceed the panel’s internal battery space.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 27.6 lbs |
|---|---|
| Dimensions | 25.5 × 16.5 × 9 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Battery |
